Product Introduction

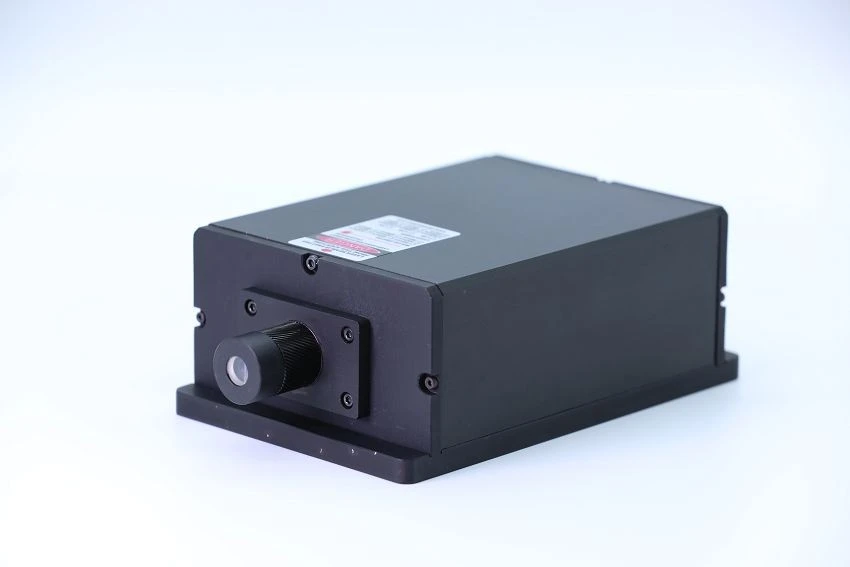

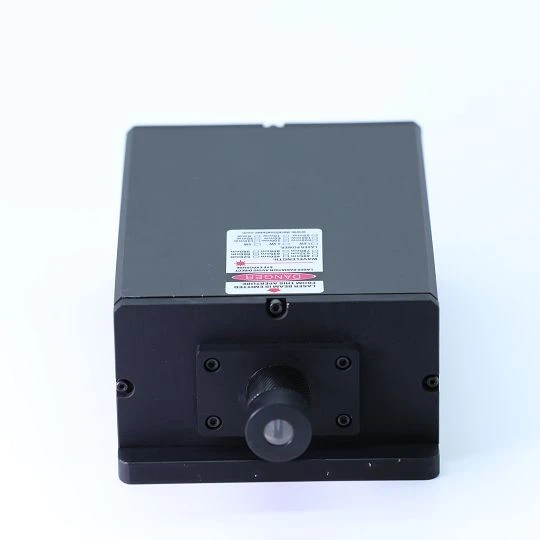

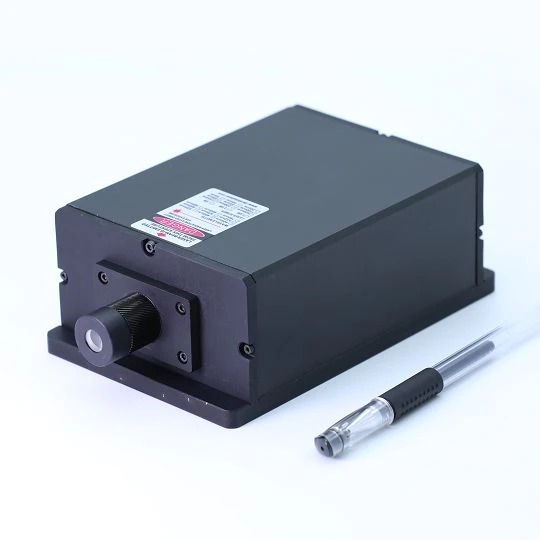

3D Inspection Line Laser Modules are designed for high-speed 3D measurement and industrial inspection applications requiring long working distance and stable laser line output.
The module provides high uniformity laser line projection with optimized optical design, helping vision systems capture accurate surface information for 3D reconstruction and measurement.
With high optical power and stable line quality, the laser module is suitable for outdoor inspection, large-scale equipment measurement and industrial automation systems.
The integrated design supports reliable operation in complex environments and can be customized according to different application requirements, including wavelength, output power, fan angle and mechanical structure.
Dershine Laser provides customized laser solutions for 3D vision equipment manufacturers and industrial inspection system integrators.
Technical Parameters
| Product Type | 3D Inspection Line Laser Module |
| Beam Pattern | Uniform Line |
| Wavelength | 808nm / 915nm |
| Output Power | ≤20W / ≤45W |
| Working Distance | Fixed / Customized |
| Uniformity | ≥75% |
| Line Straightness | ≤0.1% |
| Fan Angle | 30° / 45° / 60° / 75° / 90° (Customized) |
| Pointing Accuracy | <5mrad |
| Operating Voltage | 12-24V |
| Operating Current | <50mA / <100mA |
| Control Function | TTL Switch |
| Response Time | ≤10μs |
| Response Frequency | ≤30KHz |
| Modulation Duty Cycle | ≤30% |
| Protection Function | ESD Protection, Reverse Protection, Over Voltage Protection, Over Current Protection |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 85℃ |
| Lifetime | ≥10000 Hours |
Product Features
High Uniformity Laser Line
The optimized optical system provides stable brightness distribution and consistent laser line quality for accurate measurement.
Long Working Distance
Designed for applications requiring extended measurement distances and large detection areas.
High-Speed 3D Measurement
Stable laser projection supports fast image acquisition and 3D reconstruction.
Industrial Reliability
The integrated structure provides stable performance for continuous industrial operation.
3D Inspection Advantages
For 3D inspection systems, laser line quality directly affects image acquisition and measurement accuracy.
The module provides a stable and uniform laser line, helping cameras capture clear surface profiles during high-speed scanning.
The optimized optical design improves measurement consistency for applications requiring precision and long-distance detection.
Applications
3D Machine Vision
Provides structured light sources for 3D imaging and surface measurement systems.
01
Road Inspection
Suitable for road surface detection and high-speed outdoor measurement equipment.
02
Railway Inspection
Provides stable laser references for rail surface inspection systems.
03
Industrial Inspection
Used in automated inspection equipment requiring accurate profile measurement.
04
High-Speed Measurement
Supports measurement systems requiring fast scanning and stable laser output.
05
Optical Performance
Uniform Brightness Distribution
The optimized optical design maintains consistent brightness along the laser line.
Stable Line Shape
High-quality optical components ensure stable laser line projection during operation.
Large Detection Range
Suitable for applications requiring wider measurement areas and longer distances.
OEM Customization
Different 3D inspection systems require different optical parameters and mechanical designs.
Dershine Laser provides customized solutions according to customer equipment requirements.
Customization options include:
- Wavelength
- Output power
- Fan angle
- Working distance
-
Laser line width
-
Housing structure
-
Cable configuration
-
Control interface
