Product Introduction

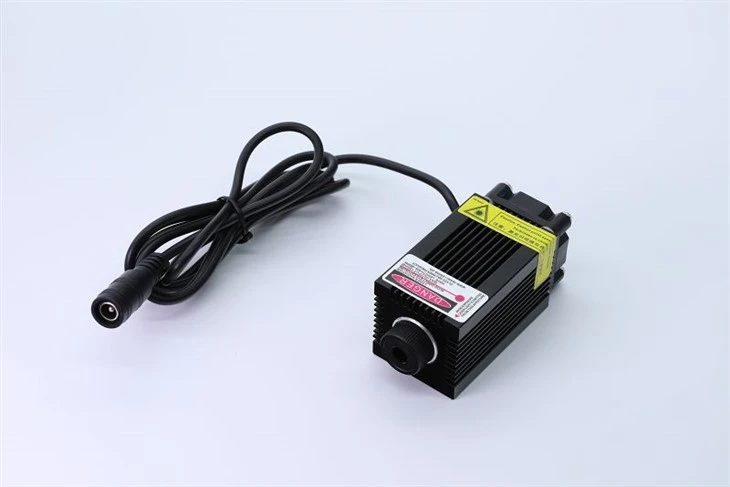

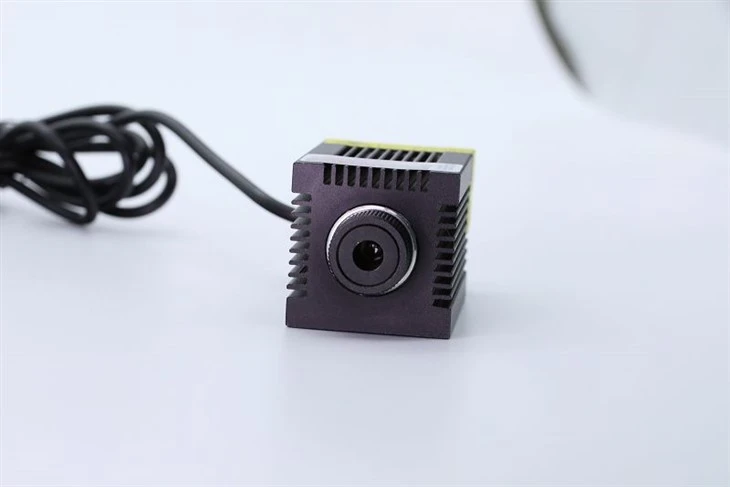

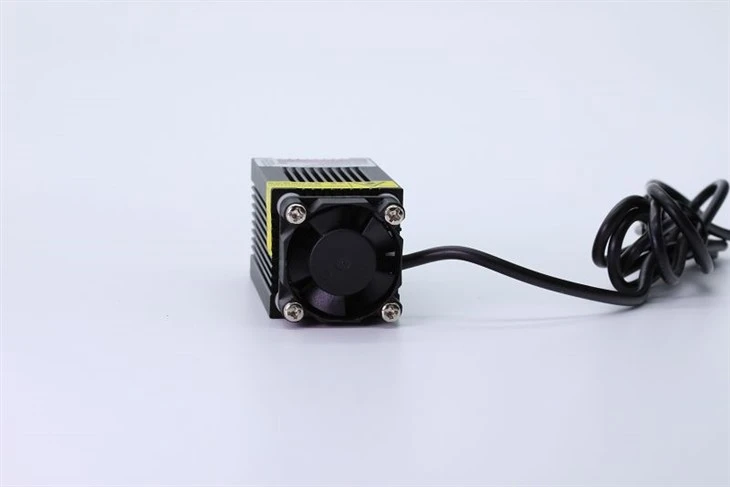

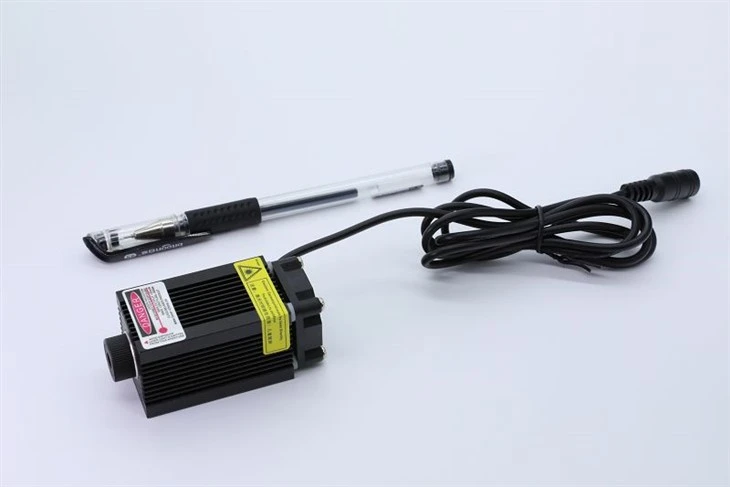

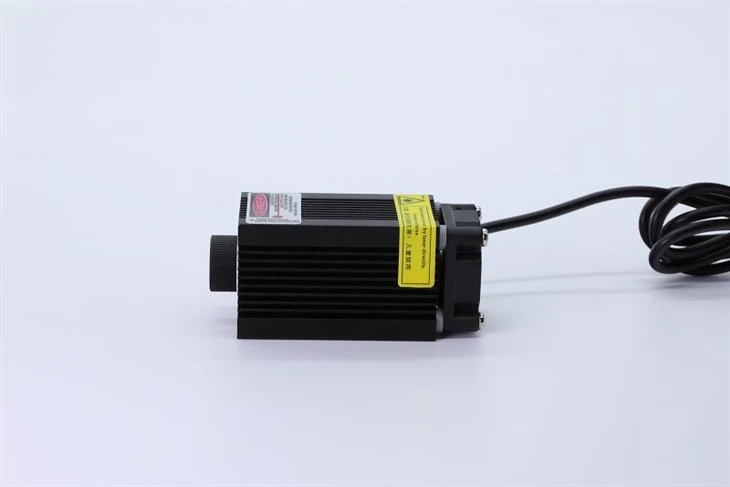

The High Power Dot Laser Module is designed for applications requiring high brightness laser projection and long-distance positioning.
With high output power, stable optical performance and reliable dot projection, the module provides an effective laser solution for industrial positioning, measurement systems and equipment requiring enhanced visibility.
The robust design and flexible configuration make it suitable for integration into industrial equipment, inspection systems and customized applications.
Product Parameters
|
Item |
Specification |
|
Laser Type |
High Power Dot Laser Module |
|
Wavelength |
405nm, 450nm, 520nm, 635nm, 650nm, 808nm, 980nm |
|
Output Power |
1-100mW / 1-500mW |
|
Working Distance |
Adjustable / Fixed / Customized |
|
Beam Divergence |
0.10mrad, 0.20mrad, 0.30mrad, 0.50mrad, 0.80mrad, 1mrad |
|
Round Spot Size |
Φ0.5mm@0.5m, Φ1.0mm@1m, Φ4.0mm@5m, Φ5.0mm@10m |
|
Elliptical Spot Size |
1×2mm@1m, 2×4mm@2m, 3×6mm@5m, 5×10mm@10m, 8×16mm@20m |
|
Operating Current |
<100mA / <300mA |
|
Operating Voltage |
3-5V, 12V, 24V |
|
Control Function |
TTL Switch (Optional) |
|
Housing Material |
Copper, Aerospace Aluminum |
|
Operating Temperature |
-10~50℃, -20~60℃ |
|
Storage Temperature |
-40~85℃ |
|
Lifetime |
≥10000h |
|
Accessories |
Industrial Bracket, Power Supply, Cable Extension |
Product Features
High Power Laser Output
High output power provides brighter dot projection and improved visibility for long-distance applications.
Stable Optical Performance
Optimized optical design ensures stable laser output and consistent spot quality during operation.
Long Distance Projection
The module supports various working distance requirements for industrial positioning and measurement applications.
Reliable Industrial Design
Compact structure and durable housing design enable stable operation in industrial environments.
Applications
- Industrial Positioning
- Long Distance Alignment
- Measurement Systems
- Inspection Equipment
-
Automation Equipment
-
Machine Vision Systems
