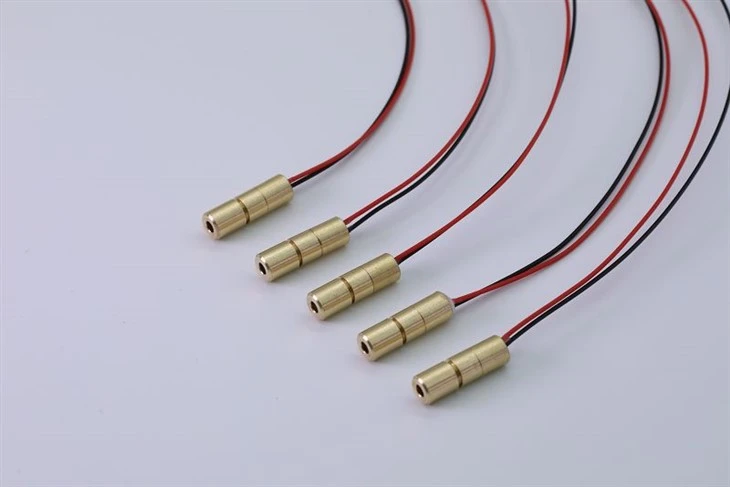

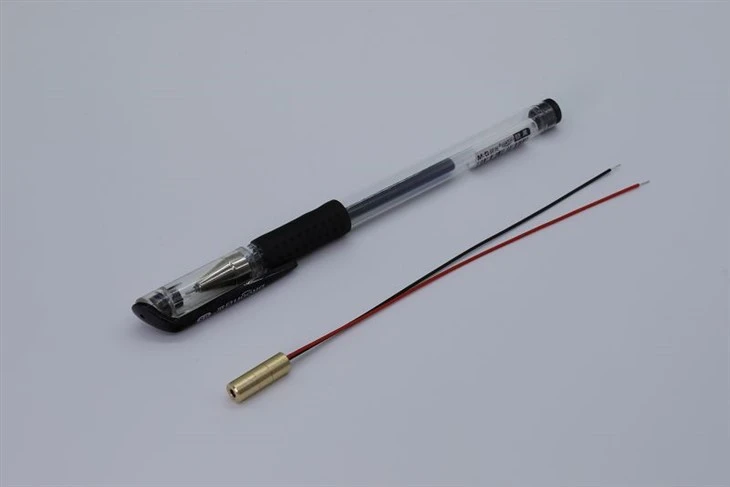

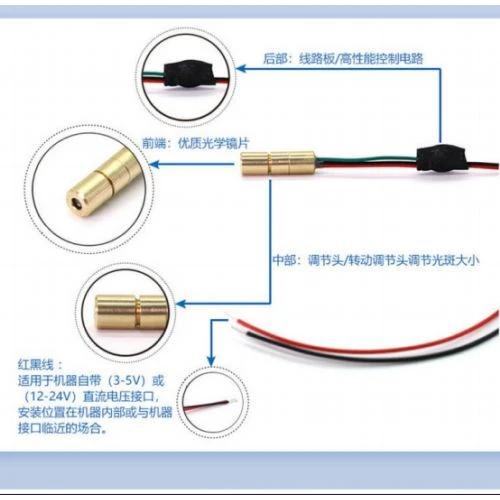

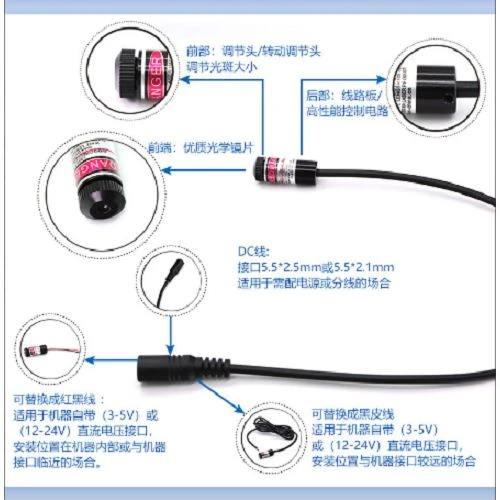

Product Introduction
The Red Dot Laser Module provides a stable and clearly visible red laser spot for industrial positioning, alignment and measurement applications.
As one of the most widely used laser positioning solutions, the module offers reliable optical performance, compact structure and flexible configuration options for integration into various equipment.
The stable output and precise spot projection make it suitable for automation systems, measurement instruments and industrial positioning applications.
Product Parameters
|
Item |
Specification |
|
Laser Type |
Red Dot Laser Module |
|
Wavelength |
635nm, 650nm |
|
Output Power |
1-100mW / 1-500mW |
|
Working Distance |
Adjustable / Fixed / Customized |
|
Beam Divergence |
0.10mrad, 0.20mrad, 0.30mrad, 0.50mrad, 0.80mrad, 1mrad |
|
Round Spot Size |
Φ0.5mm@0.5m, Φ1.0mm@1m, Φ4.0mm@5m, Φ5.0mm@10m |
|
Elliptical Spot Size |
1×2mm@1m, 2×4mm@2m, 3×6mm@5m, 5×10mm@10m, 8×16mm@20m |
|
Operating Current |
<100mA / <300mA |
|
Operating Voltage |
3-5V, 12V, 24V |
|
Control Function |
TTL Switch (Optional) |
|
Housing Material |
Copper, Aerospace Aluminum |
|
Operating Temperature |
-10~50℃, -20~60℃ |
|
Storage Temperature |
-40~85℃ |
|
Lifetime |
≥10000h |
|
Accessories |
Industrial Bracket, Power Supply, Cable Extension |
Product Features
Clear Red Laser Spot
The red laser output provides a visible and well-defined spot for accurate positioning and alignment.
Stable Optical Performance
Optimized optical design ensures stable laser output and consistent spot quality during operation.
Flexible Configuration
Supports different wavelength, power and optical configurations according to application requirements.
Easy System Integration
Compact housing design allows convenient installation into industrial equipment and optical systems.
Applications
- Industrial Positioning
- Automation Equipment
- Measurement Instruments
- Machine Vision Systems
-
Laser Alignment Systems
