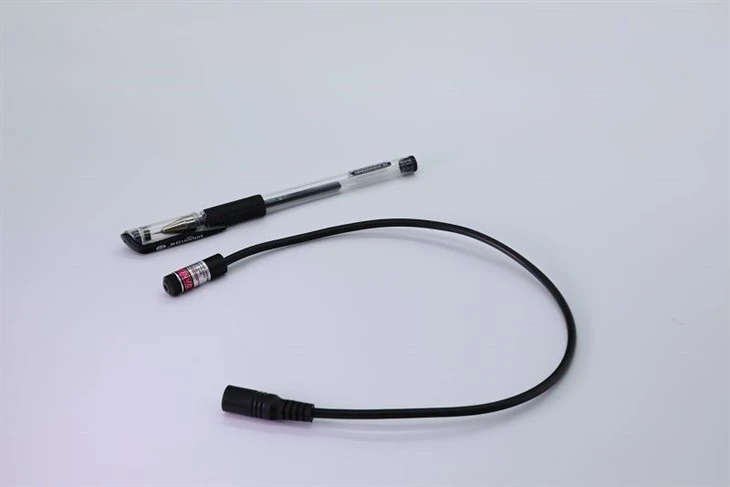

Product Introduction
The Infrared Dot Laser Module is designed for applications requiring invisible laser positioning and optical sensing.
Using infrared laser technology, the module provides stable dot projection and reliable optical output for integration into industrial equipment, vision systems and sensing devices.
The compact structure and flexible configuration make it suitable for applications where visible light is not preferred or where infrared detection systems are required.
Product Parameters
|
Item |
Specification |
|
Laser Type |
Dot Laser |
|
Wavelength |
405nm, 450nm, 520nm, 635nm, 650nm, 808nm, 980nm |
|
Output Power |
1-100mW / 1-500mW |
|
Working Distance |
Adjustable / Fixed / Customized |
|
Beam Divergence |
0.10mrad, 0.20mrad, 0.30mrad, 0.50mrad, 0.80mrad, 1mrad |
|
Round Spot Size |
Φ0.5mm@0.5m, Φ1.0mm@1m, Φ4.0mm@5m, Φ5.0mm@10m |
|
Elliptical Spot Size |
1×2mm@1m, 2×4mm@2m, 3×6mm@5m, 5×10mm@10m, 8×16mm@20m |
|
Operating Current |
<100mA / <300mA |
|
Operating Voltage |
3-5V, 12V, 24V |
|
Control Function |
TTL Switch (Optional) |
|
Housing Material |
Copper, Aerospace Aluminum |
|
Operating Temperature |
-10~50℃, -20~60℃ |
|
Storage Temperature |
-40~85℃ |
|
Lifetime |
≥10000h |
|
Accessories |
Industrial Bracket, Power Supply, Cable Extension |
Product Features
Invisible Infrared Projection
The infrared laser output provides a non-visible positioning solution for systems equipped with infrared cameras or sensors.
Stable Optical Performance
Optimized optical design ensures stable laser output and consistent dot quality during operation.
Compact Integration Design
Small-size housing design allows easy integration into different devices and optical systems.
Flexible Customization
Supports customization according to different requirements, including wavelength, output power, optical structure and housing design.
Applications
- Machine Vision Systems
- Infrared Detection Equipment
- Industrial Positioning
- Measurement Systems
-
Sensor Systems
Customization
Dershine Laser provides customized infrared laser module solutions according to different application requirements.
Customization options include:
Laser wavelength
1
>>
Output power
2
>>
Spot size
3
>>
Working distance
4
>>
Housing structure
5
>>
Cable configuration
6
