Product Introduction

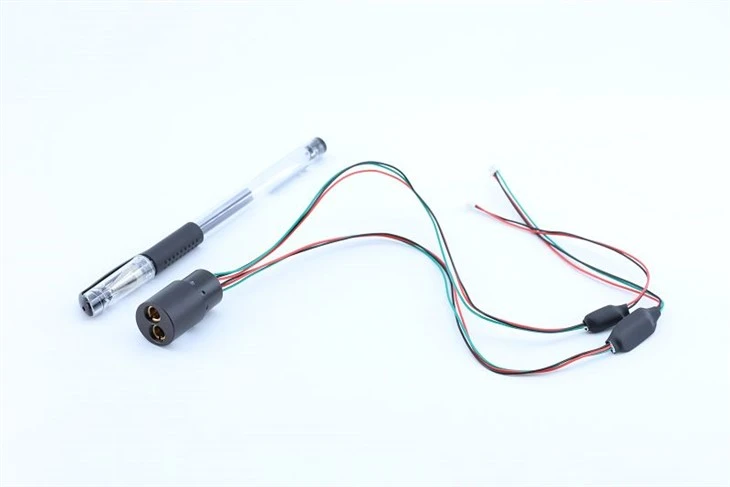

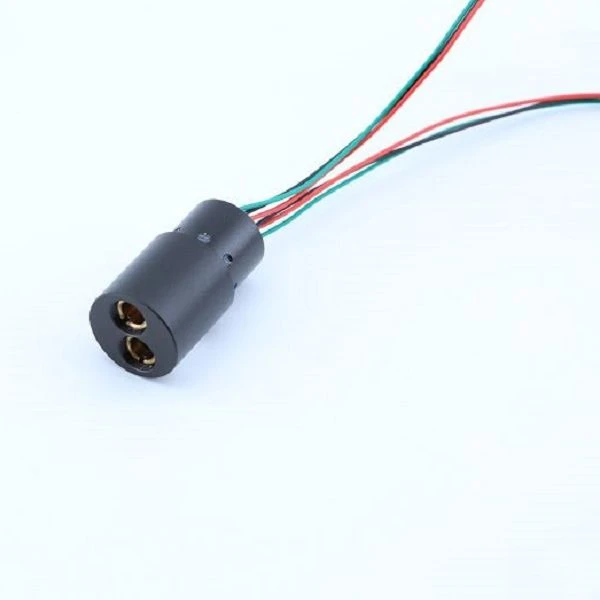

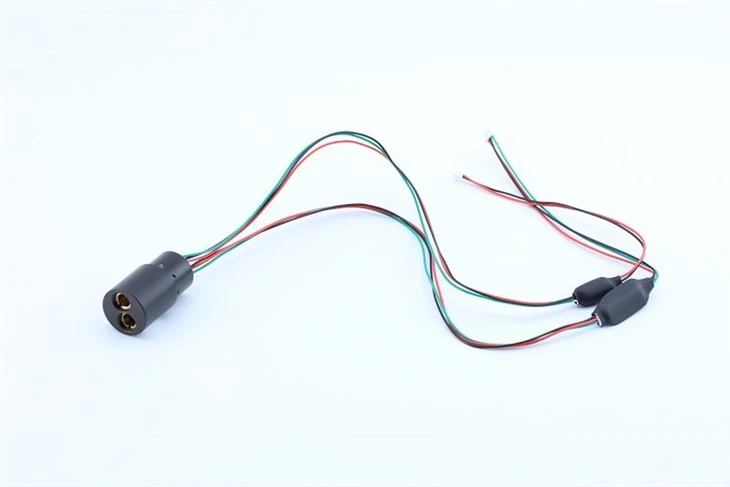

Dual Dot Laser Modules integrate two laser channels into one compact housing, providing two stable laser reference points for accurate positioning and alignment.
With high coaxiality, good beam collimation and high brightness output, the module provides clear positioning marks even in long-distance applications.
The dual wavelength design combines different laser wavelengths in one module, allowing customers to select suitable optical configurations according to equipment requirements.
Dershine Laser provides customized dual dot laser solutions for industrial positioning systems, measurement equipment and special optical applications.
Product Parameters
|
Item |
Specification |
|
Laser Type |
Dual Dot Laser Module |
|
Wavelength |
633-643nm + 965-990nm / 980nm |
|
Output Power |
≤30mW + ≤50mW / Customized |
|
Working Distance |
50m-3600m (Customized) |
|
Beam Size |
Customized |
|
Operating Voltage |
3.3-4.2V |
|
Operating Current |
≤500mA |
|
Drive Mode |
APC / ACC |
|
Control Function |
TTL (Optional) |
|
Housing Size |
Φ13×24.85mm / 14×30×30mm |
|
Housing Material |
Black Anodized Aluminum |
|
Operating Temperature |
-10℃ to 60℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Humidity |
≤90% |
Key Features
High Coaxial Accuracy
The two laser outputs maintain stable alignment, providing reliable reference points for precision positioning applications.
High Beam Collimation
Optimized optical design helps maintain beam direction during long-distance projection.
High Brightness Output
The bright laser points provide clear visibility for industrial environments and equipment integration.
Application Areas
Industrial Positioning
Used as visible reference points for equipment positioning and adjustment.
Product Advantages
Integrated Dual Laser Design
Customized Optical Configuration
