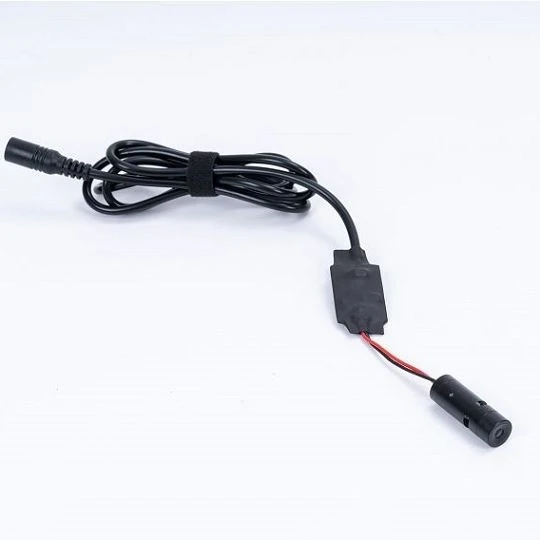

Product Introduction
The High Uniformity Line Laser Module is designed for applications requiring consistent laser line brightness and stable optical performance.
With optimized optical design, the module provides a highly uniform laser line output with excellent brightness distribution, ensuring reliable performance across the working range.
The compact structure, stable optical characteristics and flexible configuration make it suitable for industrial positioning, measurement equipment and customized laser illumination applications.
Technical Parameters
|
Item |
Specification |
|
Laser Type |
Uniform Line Laser Module |
|
Model |
DS1235 / DS1535 |
|
Housing Size |
Φ12×35mm / Φ15×35mm |
|
Laser Pattern |
Uniform Line |
|
Wavelength |
405nm, 450nm, 520nm, 635nm, 638nm, 650nm, 660nm, 808nm |
|
Output Power |
10-5000mW |
|
Working Distance |
Fixed / Customized |
|
Uniformity |
Single Mode ≥80%, Multi Mode ≥70% |
|
Line Straightness |
≤0.1% |
|
Fan Angle |
10°~90° |
|
Pointing Accuracy |
<5mrad |
|
Operating Voltage |
3-5V, 12V, 24V |
|
Operating Current |
100-5000mA (Customized) |
|
Control Function |
Analog Modulation, PWM Modulation, TTL Switch (Optional) |
|
Protection Function |
ESD Protection, Reverse Polarity Protection |
|
Operating Temperature |
-10~50℃ |
|
Storage Temperature |
-40~85℃ |
|
Lifetime |
≥10000h |
Product Advantages
|
Advantage |
Description |
|
High Uniformity |
Provides consistent brightness along the laser line |
|
Stable Output |
Maintains reliable optical performance during operation |
|
Flexible Control |
Supports multiple modulation and control methods |
|
Wide Configuration Range |
Supports different wavelengths and power options |
|
Long Lifetime |
Designed for industrial continuous operation |
Product Features
High Uniformity Laser Line Output
Optimized optical design provides consistent brightness distribution along the laser line, reducing intensity variation.
Stable Optical Performance
High-quality optical components ensure stable output power and reliable operation during long-term use.
Adjustable Configuration
Supports different wavelengths, output powers and control methods according to application requirements.
Compact Industrial Design
Compact housing design allows easy integration into industrial equipment and customized systems.
Multiple Control Options
Supports analog modulation, PWM control and TTL switch control for flexible system integration.
Applications
Industrial Positioning
Providing stable and uniform laser references for equipment positioning.
01
Measurement Systems
Suitable for applications requiring consistent laser line illumination.
02
Precision Alignment
Providing clear and uniform positioning references for equipment adjustment.
03
Industrial Equipment
Integrated into customized machinery and automation systems.
04
Laser Illumination Applications
Used where stable and uniform line projection is required.
05
Customization Options
Dershine Laser provides customized high uniformity line laser solutions according to different industrial requirements.
Customization options include:
- Laser wavelength
- Output power
- Working distance
- Uniformity requirement
-
Fan angle
-
Control method
-
Housing structure
-
Cable configuration
