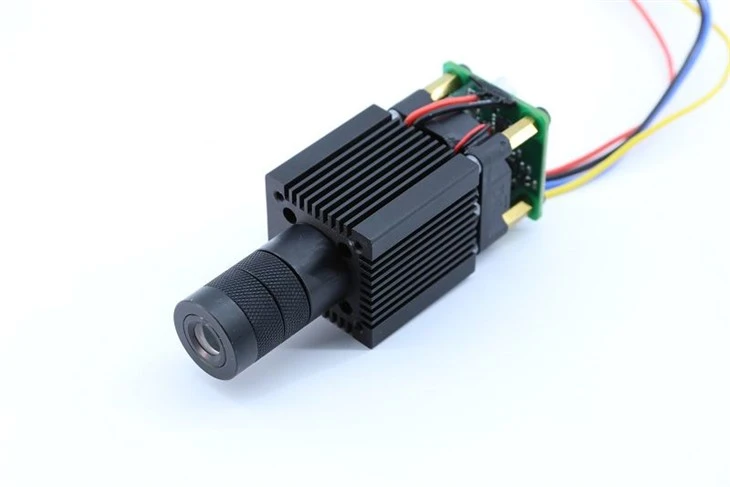

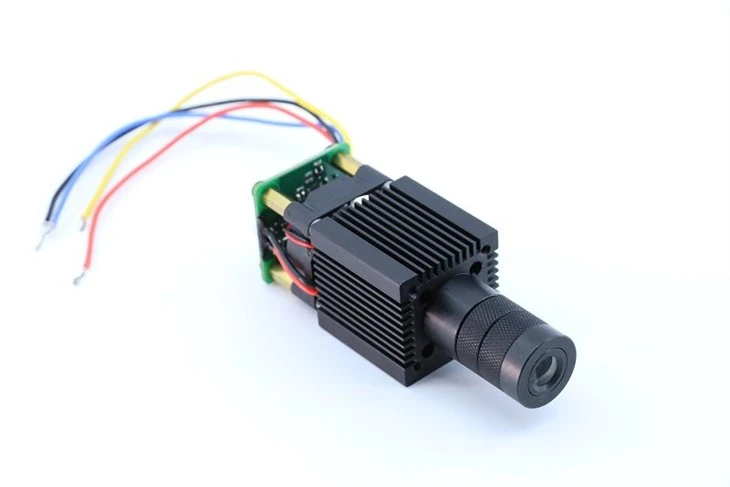

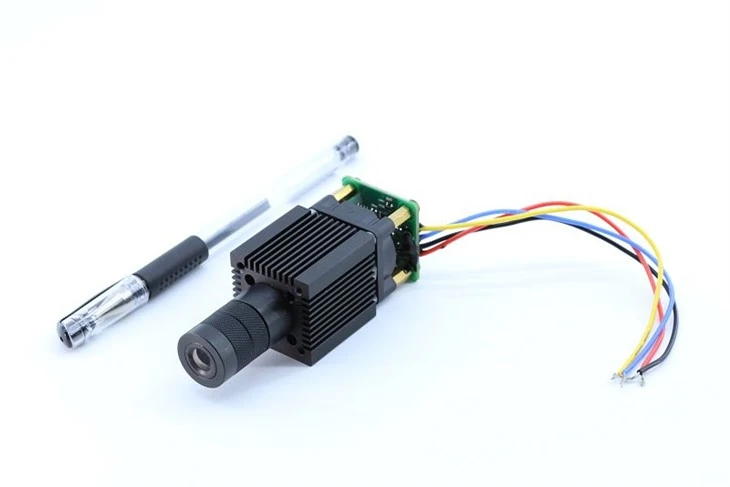

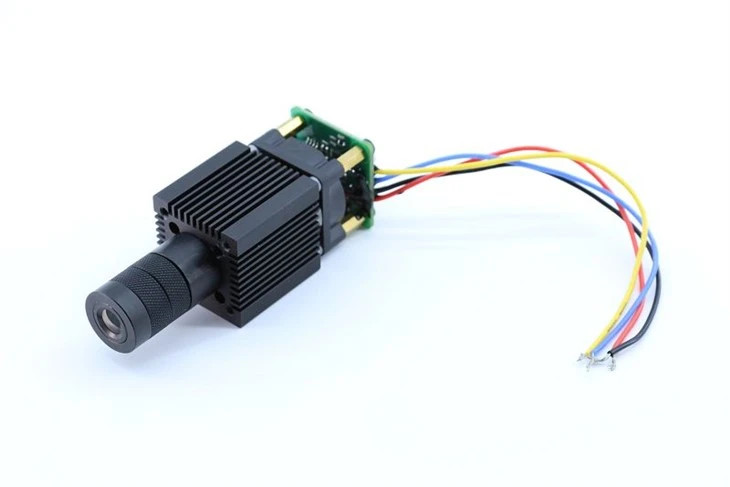

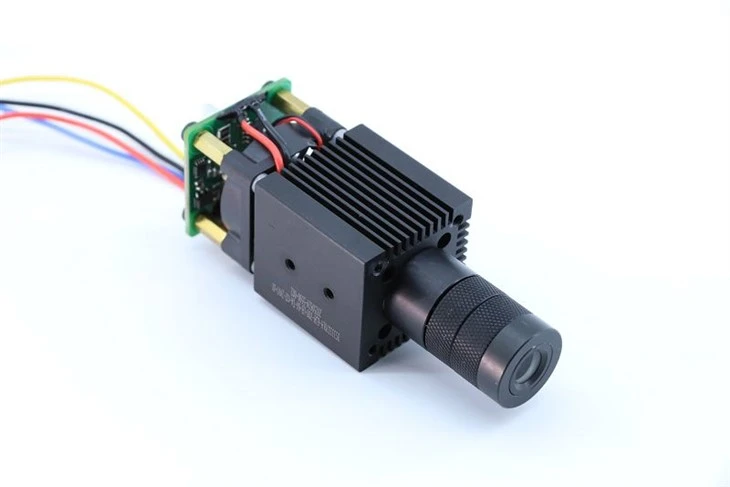

Product Introduction
The Green Uniform Line Laser Module is designed for applications requiring high visibility and uniform laser line projection.
Using green laser technology with excellent visual sensitivity, the module provides a bright and clear uniform laser line for positioning, alignment and illumination applications.
With stable optical performance, compact structure and flexible configuration options, it is suitable for industrial positioning systems, measurement equipment and customized laser applications.
Technical Parameters
|
Item |
Specification |
|
Laser Type |
Green Uniform Line Laser Module |
|
Wavelength |
520nm |
|
Output Power |
10-5000mW |
|
Laser Pattern |
Uniform Line |
|
Working Distance |
Fixed / Customized |
|
Uniformity |
Single Mode ≥80%, Multi Mode ≥70% |
|
Line Straightness |
≤0.1% |
|
Fan Angle |
10°~90° |
|
Pointing Accuracy |
<5mrad |
|
Operating Voltage |
3-5V, 12V, 24V |
|
Operating Current |
100-5000mA (Customized) |
|
Control Function |
Analog Modulation, PWM Modulation, TTL Switch (Optional) |
|
Protection Function |
ESD Protection, Reverse Polarity Protection |
|
Operating Temperature |
-10~50℃ |
|
Storage Temperature |
-40~85℃ |
|
Lifetime |
≥10000h |
Product Advantages
|
Advantage |
Description |
|
High Visibility |
Green laser provides excellent visual recognition |
|
Uniform Brightness |
Maintains consistent brightness along the laser line |
|
Stable Output |
Ensures reliable long-term operation |
|
Flexible Configuration |
Supports various optical requirements |
|
Easy Integration |
Compact structure for industrial applications |
Product Features
High Visibility Green Laser Output
The green laser wavelength provides excellent visibility, making the projected line easier to identify during operation.
Uniform Line Projection
Optimized optical design ensures consistent brightness distribution and stable line quality across the working range.
Stable Optical Performance
Reliable laser components provide stable output power and long-term operating performance.
Compact Industrial Design
Compact housing design allows easy integration into different industrial equipment and systems.
Flexible Customization
Supports customization of wavelength, output power, working distance and optical structure.
Applications
Industrial Positioning
Providing clear and highly visible positioning references for industrial equipment.
01
Equipment Alignment
Helping operators achieve accurate alignment and adjustment.
02
Measurement Systems
Providing uniform laser references for measurement applications.
03
Automation Equipment
Integrated into automated systems requiring visible laser guidance.
04
Laser Marking Assistance
Used as a visual reference for processing and operation guidance.
05
Customization Options
Dershine Laser provides customized green uniform line laser solutions according to different industrial requirements.
Customization options include:
- Laser wavelength
- Output power
- Working distance
- Line width
-
Uniformity requirement
-
Fan angle
-
Housing structure
-
Cable configuration
