Product Introduction

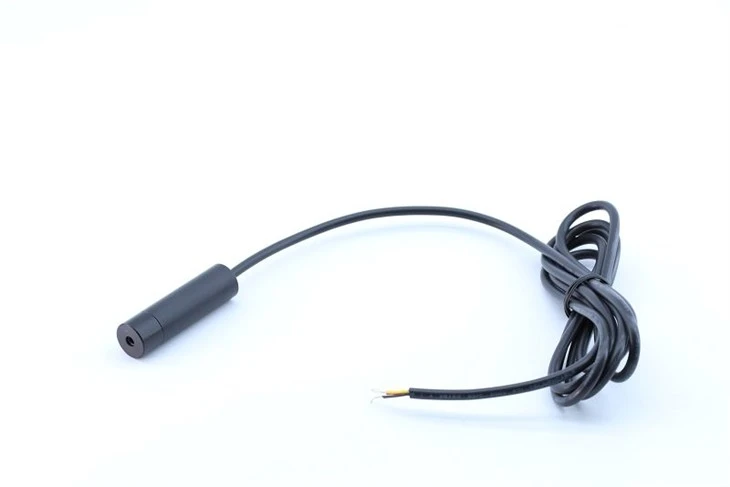

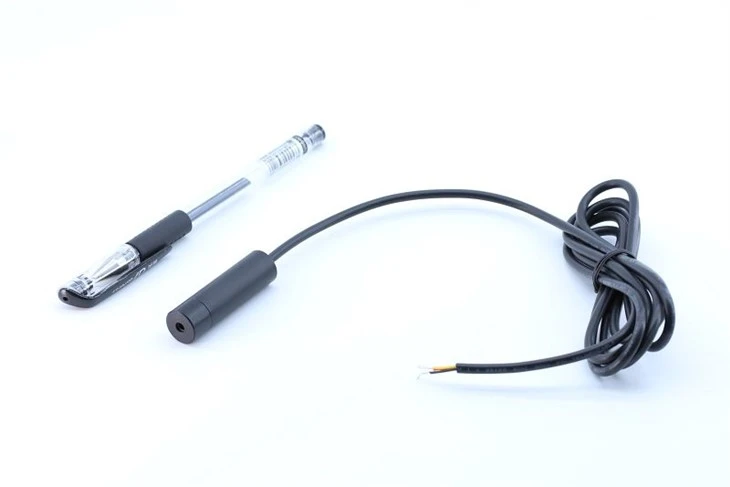

The Long Working Distance Uniform Line Laser Module is designed for applications requiring extended projection distance and stable uniform laser line output.
With optimized optical design and high-performance laser components, the module maintains consistent line quality and brightness distribution over long working distances.
The reliable optical performance and flexible configuration make it suitable for industrial positioning, large equipment alignment and long-range laser projection applications.
Technical Parameters
|
Item |
Specification |
|
Laser Type |
Long Working Distance Uniform Line Laser Module |
|
Wavelength |
405nm, 450nm, 520nm, 635nm, 650nm, 660nm, 808nm |
|
Output Power |
10-5000mW |
|
Laser Pattern |
Uniform Line |
|
Working Distance |
Long Distance / Customized |
|
Uniformity |
Single Mode ≥80%, Multi Mode ≥70% |
|
Line Straightness |
≤0.1% |
|
Fan Angle |
10°~90° |
|
Pointing Accuracy |
<5mrad |
|
Operating Voltage |
3-5V, 12V, 24V |
|
Operating Current |
100-5000mA (Customized) |
|
Control Function |
Analog Modulation, PWM Modulation, TTL Switch (Optional) |
|
Protection Function |
ESD Protection, Reverse Polarity Protection |
|
Operating Temperature |
-10~50℃ |
|
Storage Temperature |
-40~85℃ |
|
Lifetime |
≥10000h |
Product Advantages
|
Advantage |
Description |
|
Long Working Distance |
Provides stable laser projection over extended distances |
|
Uniform Line Output |
Maintains consistent brightness along the laser line |
|
Stable Performance |
Ensures reliable operation in industrial environments |
|
Wide Coverage |
Suitable for large working areas |
|
Customizable Design |
Supports different application requirements |
Product Features
Long Working Distance Projection
The optimized optical structure enables stable laser line projection over extended working distances.
Uniform Brightness Distribution
The module maintains consistent brightness along the laser line, ensuring clear and reliable positioning references.
Stable Optical Performance
High-quality optical components provide reliable output performance during long-term operation.
Wide Application Compatibility
Suitable for large equipment, industrial systems and applications requiring long-distance laser projection.
Flexible Customization
Supports customization of wavelength, output power, working distance and optical parameters.
Applications
Large Equipment Positioning
Providing long-distance positioning references for large industrial equipment.
01
Industrial Alignment
Supporting accurate alignment during equipment installation and adjustment.
02
Automation Systems
Used in automated systems requiring extended laser projection distance.
03
Measurement Applications
Providing stable laser references for long-range measurement systems.
04
Industrial Processing Equipment
Supporting positioning and guidance operations in large-scale processing equipment.
05
Customization Options
Dershine Laser provides customized long working distance uniform line laser solutions according to different industrial requirements.
Customization options include:
- Laser wavelength
- Output power
- Working distance
- Line width
-
Uniformity requirement
-
Fan angle
-
Housing structure
-
Cable configuration
