Product Introduction

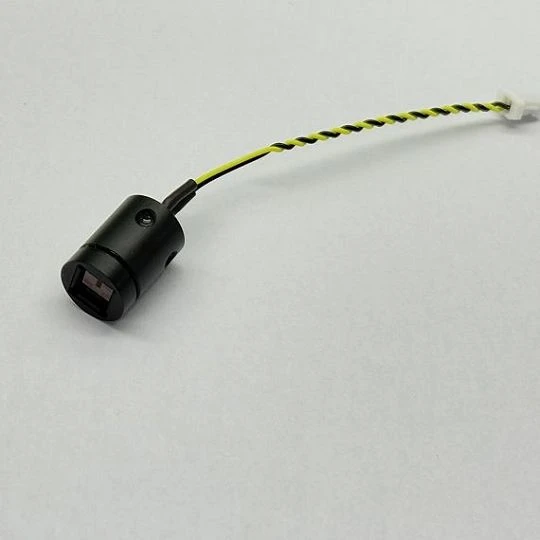

Compact Uniform Line Laser Modules are designed for applications requiring high-quality laser line projection in a limited installation space.
With a compact structure, stable optical performance and high pointing accuracy, the module provides uniform laser line output with consistent brightness distribution.
The product integrates laser source, optical components and control circuit into a small housing, making it suitable for equipment requiring compact installation and reliable operation.
Compact Uniform Line Laser Modules support different wavelength and power configurations. External focus adjustment or fixed-focus designs are available according to application requirements.
Dershine Laser provides customized solutions for industrial equipment manufacturers, including optical design, mechanical structure and electrical configuration.
Technical Parameters
|
Item |
Specification |
|
Beam Pattern |
Uniform Line Laser |
|
Wavelength |
405nm / 450nm / 520nm / 635nm / 638nm / 650nm / 660nm / 808nm |
|
Output Power |
10-5000mW |
|
Working Distance |
Fixed / Customized |
|
Uniformity |
Single Mode ≥80%, Multi Mode ≥70% |
|
Line Straightness |
≤0.1% |
|
Fan Angle |
10°-90° |
|
Pointing Accuracy |
<5 mrad |
|
Operating Voltage |
3-5V / 12V / 24V |
|
Operating Current |
100-5000mA (Customized) |
|
Control Function |
Analog Modulation / PWM Modulation / TTL Switch (Optional) |
|
Protection Function |
ESD Protection / Over Temperature Protection |
|
Operating Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 85℃ |
|
Lifetime |
≥10000 Hours |
Product Features
Compact Structure Design
The compact housing design saves installation space and allows flexible integration into different equipment.
High Uniformity Laser Line
Optimized optical design provides uniform laser line width and brightness distribution.
High Pointing Accuracy
Stable optical alignment ensures consistent laser direction during equipment operation.
Protection Design
The module features ESD protection and over-temperature protection to improve product reliability.
Applications
Machine Vision
01
3D Scanning
02
Weld Seam Tracking
03
AGV Robot
04
Industrial Inspection
05
Product Design
Compact Uniform Line Laser Modules are available with different mechanical structures to meet different equipment installation requirements.
External focus adjustment and fixed-focus designs can be selected according to working distance and application conditions.
OEM Customization
Different applications require different optical and mechanical designs.
We provide customization services including:
- Wavelength selection
- Output power
- Line width
- Working distance
-
Focus method
-
Housing structure
-
Cable configuration
FAQ
Q: What makes Compact Uniform Line Laser Modules different?
A: They combine compact size with uniform line output, stable optical performance and flexible integration options.
Q: Can the focus type be customized?
A: Yes. External focus adjustment or fixed-focus designs can be selected according to application requirements.
Q: What applications use this laser module?
A: It is commonly used in machine vision, 3D scanning, weld seam tracking, AGV robots and industrial inspection.
