Product Introduction

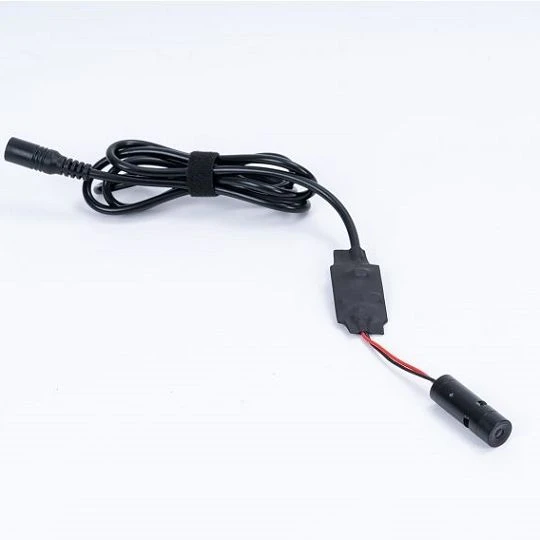

The Micro Line Laser Module is designed for applications requiring ultra-fine laser line projection and high precision positioning.
With optimized optical design and precise beam control, the module provides a narrow and clear laser line output for applications requiring fine positioning references and detailed line projection.
The compact structure and stable optical performance make it suitable for precision equipment, measurement systems and customized industrial applications.
Technical Parameters
|
Item |
Specification |
|
Laser Type |
Micro Line Laser Module |
|
Wavelength |
405nm, 450nm, 520nm, 635nm, 650nm, 660nm |
|
Output Power |
10-5000mW |
|
Laser Pattern |
Uniform Line |
|
Working Distance |
Fixed / Customized |
|
Line Width |
Customized |
|
Uniformity |
Single Mode ≥80%, Multi Mode ≥70% |
|
Line Straightness |
≤0.1% |
|
Fan Angle |
10°~90° |
|
Pointing Accuracy |
<5mrad |
|
Operating Voltage |
3-5V, 12V, 24V |
|
Operating Current |
100-5000mA (Customized) |
|
Control Function |
Analog Modulation, PWM Modulation, TTL Switch (Optional) |
|
Protection Function |
ESD Protection, Reverse Polarity Protection |
|
Operating Temperature |
-10~50℃ |
|
Storage Temperature |
-40~85℃ |
|
Lifetime |
≥10000h |
Product Advantages
|
Advantage |
Description |
|
Micro Line Width |
Provides ultra-fine laser line projection |
|
High Precision |
Suitable for precision positioning requirements |
|
Stable Output |
Maintains consistent laser performance |
|
Compact Design |
Easy integration into equipment |
|
Customizable |
Supports different optical configurations |
Product Features
Ultra Fine Laser Line Output
The optimized optical design produces a narrow laser line with high definition for precision positioning applications.
High Precision Projection
The fine line output provides accurate visual references for equipment alignment and positioning.
Stable Optical Performance
High-quality optical components ensure consistent line quality and reliable long-term operation.
Compact Integration Design
Small-size housing design allows easy installation into precision equipment and industrial systems.
Flexible Customization
Supports customization of wavelength, output power, line width and optical configuration according to application requirements.
Applications
Precision Positioning
Providing fine laser references for precision equipment adjustment.
01
Measurement Equipment
Suitable for applications requiring narrow and accurate laser lines.
02
Industrial Alignment
Supporting accurate alignment and positioning during equipment installation.
03
Automation Equipment
Integrated into automated systems requiring precise laser guidance.
04
Precision Processing Equipment
Providing fine positioning references for processing and assembly applications.
05
Customization Options
Dershine Laser provides customized micro line laser solutions according to different precision application requirements.
Customization options include:
- Laser wavelength
- Output power
- Working distance
- Uniformity requirement
-
Optical structure
-
Housing design
-
Cable configuration
