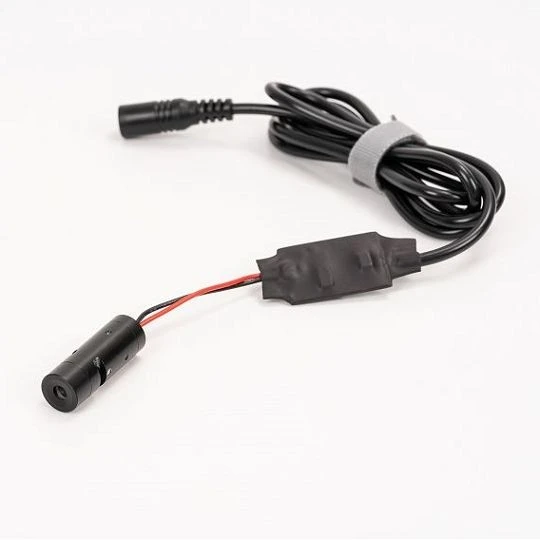

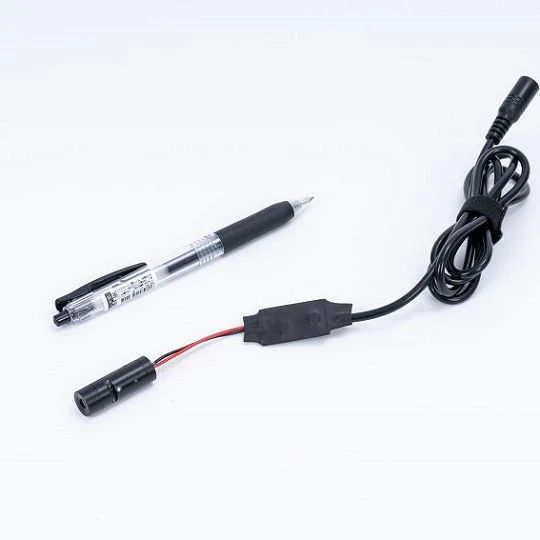

Product Introduction
Adjustable Focus Uniform Line Laser Modules are designed for applications that require flexible laser line adjustment under different working distances.
With an adjustable optical structure, the module allows users to optimize the laser line focus according to the actual installation distance and application requirements.
The adjustable focus design helps maintain clear and uniform laser line output in different working conditions, providing a flexible solution for equipment positioning, inspection and measurement applications.
Compared with fixed-focus designs, adjustable focus laser modules provide more convenience during equipment installation and optical adjustment.
Dershine Laser supports customized solutions including wavelength, output power, line width, working distance and mechanical structure to meet different industrial application requirements.
Technical Parameters
| Product Type | Adjustable Focus Uniform Line Laser Module |
| Beam Pattern | Uniform Line |
| Focus Type | Adjustable Focus |
| Wavelength | Customized |
| Output Power | Customized |
| Working Distance | Adjustable / Customized |
| Line Width | Customized |
| Fan Angle | Customized |
| Line Straightness | ≤0.1% |
| Pointing Accuracy | Customized |
| Operating Voltage | 3-5V / 12V / 24V |
| Control Function | Analog Modulation / PWM / TTL (Optional) |
| Protection Function | ESD Protection / Over Temperature Protection |
| Housing Material | Aluminum Alloy |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 85℃ |
| Lifetime | ≥10000 Hours |
Product Features
Adjustable Focus Design
The focus position can be adjusted according to different working distances, making the module suitable for various installation conditions.
Uniform Laser Line Output
Optimized optical design provides stable line brightness distribution and consistent laser line quality.
Flexible Application Range
The adjustable focus function allows one module to adapt to different equipment requirements.
Easy Optical Adjustment
The external adjustment structure simplifies installation and alignment during equipment setup.
Adjustable Focus Advantages
In practical industrial applications, the installation distance between the laser module and target surface may vary.
The adjustable focus function allows customers to fine-tune the laser line according to the actual working environment, reducing the difficulty of optical adjustment during equipment integration.
This design is especially suitable for equipment manufacturers who need flexibility during machine development and production.
Applications
Machine Vision
Adjustable focus laser lines provide flexible optical references for vision-based positioning systems.
Industrial Inspection
The adjustable laser line helps equipment achieve clear positioning references under different working distances.
3D Scanning
Stable and adjustable laser line output supports scanning equipment requiring different installation conditions.
Automation Equipment
The module can be integrated into automation systems requiring flexible laser alignment.
Product Selection Guide
When selecting an adjustable focus uniform line laser module, customers should consider:
- Required working distance
- Adjustment range
- Line width requirement
- Wavelength
-
Output power
-
Installation method
-
Control requirements
OEM Customization
Different equipment requires different optical adjustment ranges and mechanical designs.
Dershine Laser provides customized adjustable focus uniform line laser solutions according to customer requirements.
Customization options include:
- Focus adjustment method
- Wavelength
- Output power
- Line width
- Working distance
- Housing structure
- Cable configuration
FAQ
Q: What is the advantage of adjustable focus laser modules?
A: Adjustable focus laser modules allow users to optimize the laser line according to different working distances and installation conditions.
Q: Can the focus position be customized?
A: Yes. Focus adjustment range and optical configuration can be customized according to application requirements.
Q: What applications need adjustable focus laser modules?
A: They are commonly used in machine vision, industrial inspection, 3D scanning and automation equipment.
