Product Introduction

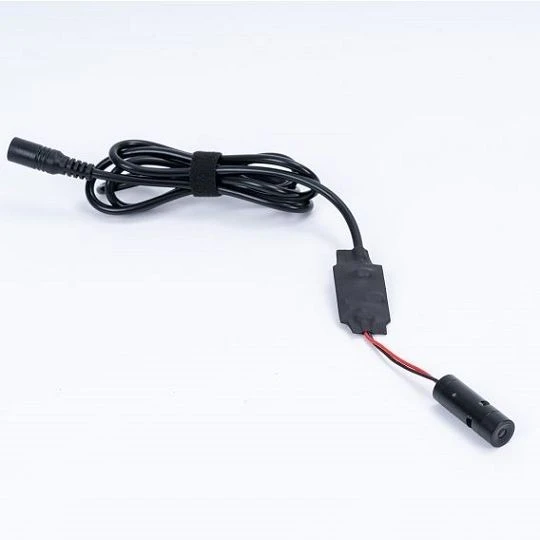

The Red Uniform Line Laser Module is designed for industrial applications requiring stable and uniform red laser line projection.
With mature red laser technology and optimized optical design, the module provides clear and consistent line output for positioning, alignment and equipment guidance applications.
The compact structure, reliable performance and flexible configuration make it suitable for industrial equipment, automation systems and customized laser solutions.
Technical Parameters
|
Item |
Specification |
|
Laser Type |
Red Uniform Line Laser Module |
|
Wavelength |
635nm, 650nm, 660nm |
|
Output Power |
10-5000mW |
|
Laser Pattern |
Uniform Line |
|
Working Distance |
Fixed / Customized |
|
Uniformity |
Single Mode ≥80%, Multi Mode ≥70% |
|
Line Straightness |
≤0.1% |
|
Fan Angle |
10°~90° |
|
Pointing Accuracy |
<5mrad |
|
Operating Voltage |
3-5V, 12V, 24V |
|
Operating Current |
100-5000mA (Customized) |
|
Control Function |
Analog Modulation, PWM Modulation, TTL Switch (Optional) |
|
Protection Function |
ESD Protection, Reverse Polarity Protection |
|
Operating Temperature |
-10~50℃ |
|
Storage Temperature |
-40~85℃ |
|
Lifetime |
≥10000h |
Product Advantages
|
Advantage |
Description |
|
Stable Red Output |
Provides reliable red laser projection performance |
|
Uniform Brightness |
Maintains consistent brightness along the laser line |
|
Wide Compatibility |
Suitable for various industrial applications |
|
Easy Integration |
Compact structure for equipment installation |
|
Long Lifetime |
Designed for continuous industrial operation |
Product Features
Stable Red Laser Output
The red laser wavelength provides reliable optical performance and good compatibility for various industrial applications.
Uniform Line Projection
Optimized optical design ensures consistent brightness distribution and stable line quality across the projection range.
Reliable Industrial Performance
High-quality laser components provide stable output and long service life for continuous operation.
Flexible Configuration Options
Supports different output powers, working distances and optical configurations according to application requirements.
Easy Equipment Integration
Compact housing design allows convenient installation into different industrial systems.
Applications
Industrial Positioning
Providing clear and stable laser references for equipment positioning.
01
Equipment Alignment
Helping operators achieve accurate alignment during installation and adjustment.
02
Automation Equipment
Used as a positioning assistant in industrial automation systems.
03
Measurement Systems
Providing uniform laser references for measuring and alignment applications.
04
Processing Equipment
Supporting positioning requirements in cutting, assembly and processing operations.
05
Customization Options
Dershine Laser provides customized red uniform line laser solutions according to different industrial requirements.
Customization options include:
- Laser wavelength
- Output power
- Working distance
- Line width
-
Uniformity requirement
-
Fan angle
-
Housing structure
-
Cable configuration
