Product Introduction

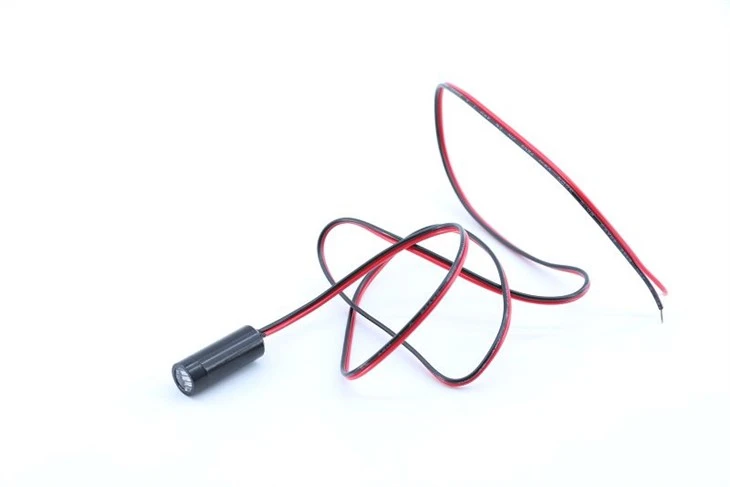

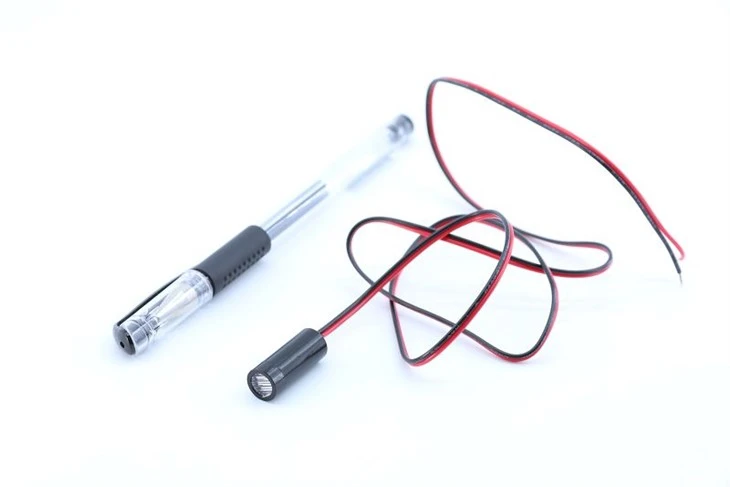

Visible Uniform Line Laser Modules are designed to provide clear and stable laser line projection for applications requiring direct visual positioning.

Using visible laser wavelengths, the module generates a uniform laser line with consistent brightness distribution, allowing operators to easily observe the projected reference line during equipment operation and adjustment.

The product is suitable for industrial positioning, equipment alignment and visual guidance applications where a clear laser reference is required.

With different wavelength, power and optical configuration options, Visible Uniform Line Laser Modules can be customized according to different working distances and application environments.

Dershine Laser provides customized laser solutions for industrial equipment manufacturers, supporting optical design, sample testing and mass production.

Technical Parameters

Item	Specification
Product Type	Visible Uniform Line Laser Module
Wavelength	405nm / 450nm / 520nm / 635nm / 638nm / 650nm / 660nm
Output Power	Customized
Beam Pattern	Uniform Line
Working Distance	Fixed / Customized
Line Width	Customized
Fan Angle	Customized
Line Straightness	≤0.1%
Pointing Accuracy	Customized
Operating Voltage	3-5V / 12V / 24V
Control Function	Analog Modulation / PWM / TTL (Optional)
Protection Function	ESD Protection / Over Temperature Protection
Housing Material	Aluminum Alloy
Operating Temperature	-10℃ to 50℃
Storage Temperature	-40℃ to 85℃
Lifetime	≥10000 Hours

Product Features

Clear Visible Laser Line

The visible laser output provides a direct visual reference, making positioning and adjustment easier during equipment operation.

Uniform Brightness Distribution

Optimized optical design helps maintain consistent brightness along the entire laser line.

Stable Line Output

The module provides stable laser line performance for continuous industrial applications.

Flexible Optical Configuration

Different wavelengths, output powers and line characteristics can be customized according to application requirements.

Visible Wavelength Options

Visible Uniform Line Laser Modules support commonly used visible wavelengths according to different application requirements.

Available wavelengths may include:

405nm
450nm
520nm
635nm
638nm
650nm
660nm

Applications

Machine Vision Assistance

3D Scanning

Weld Seam Tracking

Industrial Inspection

Product Selection Guide

When selecting a suitable Visible Uniform Line Laser Module, customers should consider:

Required wavelength
Working distance
Line width
Fan angle
Output power
Installation method

OEM Customization

Visible Uniform Line Laser Modules can be customized according to different equipment requirements.

Customization options include:

Wavelength
Output power
Line width
Fan angle
Working distance
Housing design
Cable configuration

Quality Control

Optical Performance Test

Check laser line uniformity, brightness distribution and optical output.

Electrical Test

Check operating voltage, current and control functions.

Aging Test

Ensure stable operation before shipment.

FAQ

Q: What are Visible Uniform Line Laser Modules used for?

A: They are mainly used for applications requiring a visible and uniform laser line reference, such as positioning, alignment and inspection.

Q: What wavelengths are available?

A: Common visible wavelengths include 405nm, 450nm, 520nm, 635nm, 638nm, 650nm and 660nm.

Q: Can the line width be customized?

A: Yes. Line width and optical parameters can be customized according to application requirements.
