Product Introduction

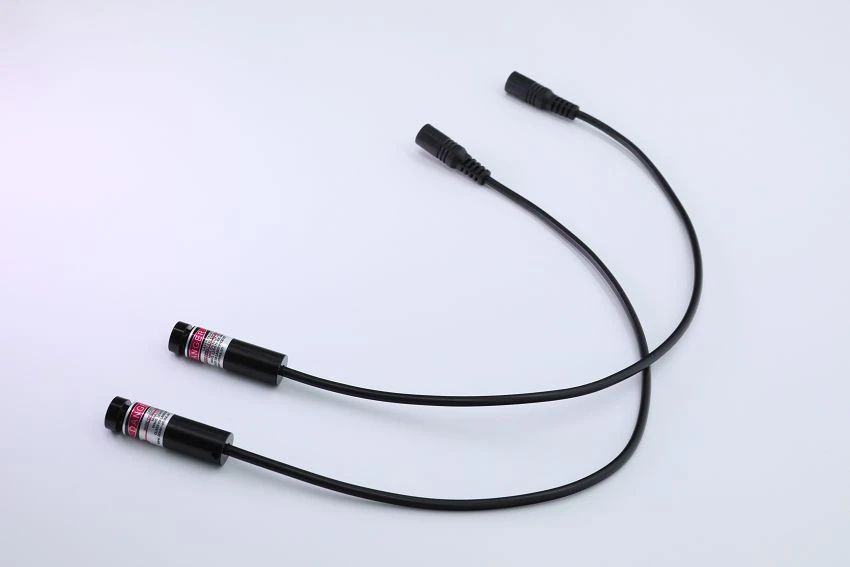

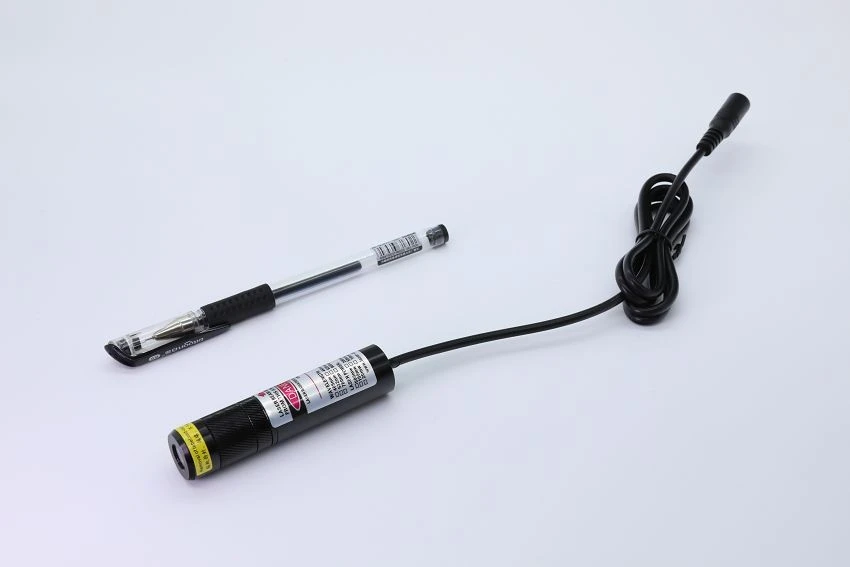

Green Cross Line Laser Modules combine horizontal and vertical laser lines into one compact optical module, creating a clear cross reference for positioning and alignment.

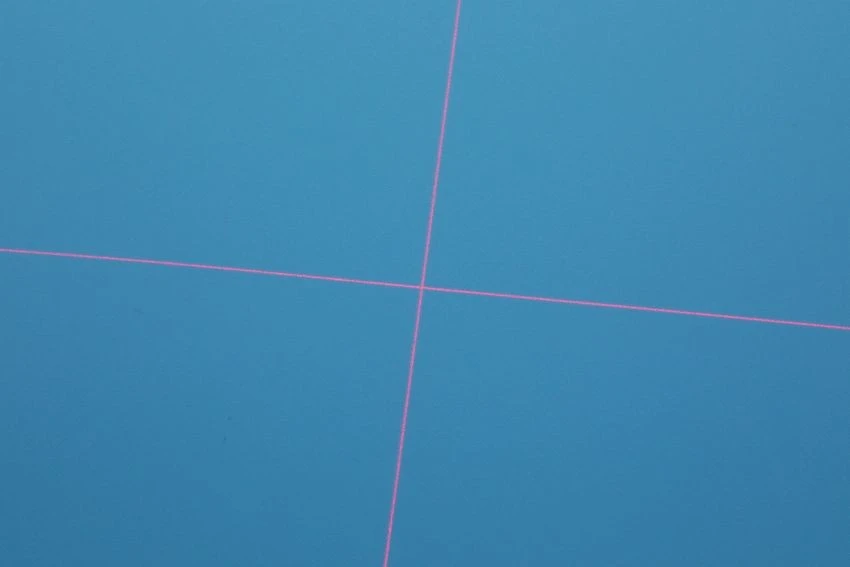

The cross pattern provides two-direction guidance at the same time, helping operators quickly identify the center position, adjust equipment alignment and complete installation setup.
With green laser output, these modules offer good visibility in many indoor industrial environments. They are widely used in equipment positioning, assembly alignment, measurement assistance and other applications that require a clear visual reference.
Dershine Laser provides customized solutions according to different equipment requirements, including wavelength, output power, housing size, cable connection and installation method.
Before production, we can review your working distance, installation position and application environment to recommend a suitable configuration.
Product Parameters
|
Item |
Specification |
|
Beam Pattern |
Cross Line |
|
Wavelength |
520nm / 635nm / 650nm / 660nm |
|
Output Power |
1–10mW / 10–500mW |
|
Working Distance |
Adjustable / Fixed (Customizable) |
|
Line Straightness |
≤0.1% |
|
Fan Angle |
5°–110° |
|
Operating Current |
10–90mA / 60–300mA |
|
Operating Voltage |
3–5V / 12V / 24V |
|
Control Function |
TTL Switch (Optional) |
|
Housing Material |
Brass / Aerospace Aluminum |
|
Operating Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 85℃ |
|
Lifetime |
≥10000 Hours |
Product Advantages
Clear Cross Reference
The horizontal and vertical laser lines intersect to create a visible reference point. This allows operators to quickly locate the center position during equipment adjustment.
Green Laser Visibility
The green laser wavelength provides a bright visual reference for many indoor positioning applications.
Two-Direction Alignment
Unlike a single line reference, the cross pattern provides both horizontal and vertical alignment information from one laser module.
Typical Applications
Industrial Assembly Positioning
During equipment assembly, the cross laser provides horizontal and vertical references to help operators adjust component positions.
Machine Alignment
The cross reference assists machine setup and fixture adjustment before processing.
Measurement Equipment Alignment
The visible cross point helps users complete initial alignment before measurement or calibration.
Automation Equipment
The compact laser module can be integrated into automation systems where visible positioning guidance is required.
OEM & Custom Service
Different machines have different installation requirements. We support customized laser solutions based on your equipment structure.
Customization options include:
- Laser wavelength
- Output power
- Cross angle
- Housing size
-
Cable length
-
Connector type
-
Working voltage
-
Mounting method
Quality Control
Optical Inspection
Check laser pattern, brightness and cross alignment before shipment.
Aging Test
Each product undergoes aging testing to confirm stable operation.
Final Inspection
Appearance, electrical performance and output condition are checked before delivery.
FAQ
Q: What is a cross line laser module used for?
A: A cross line laser module provides horizontal and vertical references for alignment, positioning and equipment setup.
Q: What is the difference between a line laser and a cross line laser?
A: A line laser provides one-direction reference, while a cross line laser combines horizontal and vertical references.
Q: Can the green cross line laser be customized?
A: Yes. We support customization of wavelength, power, housing and cable configuration according to project requirements.
