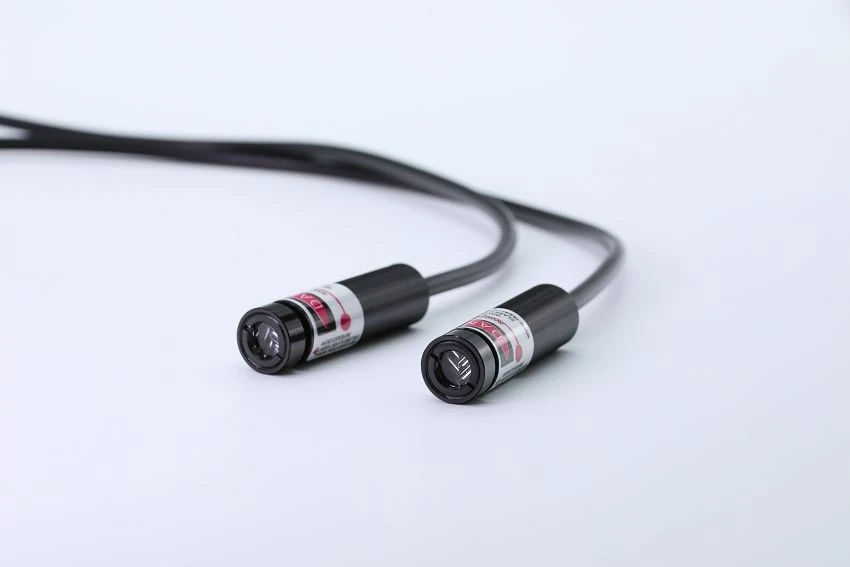

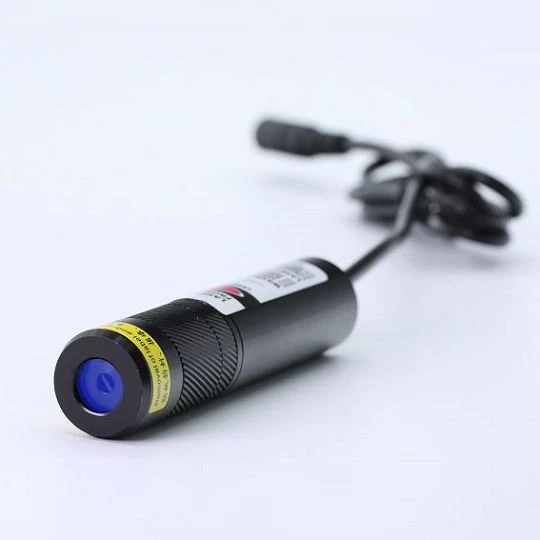

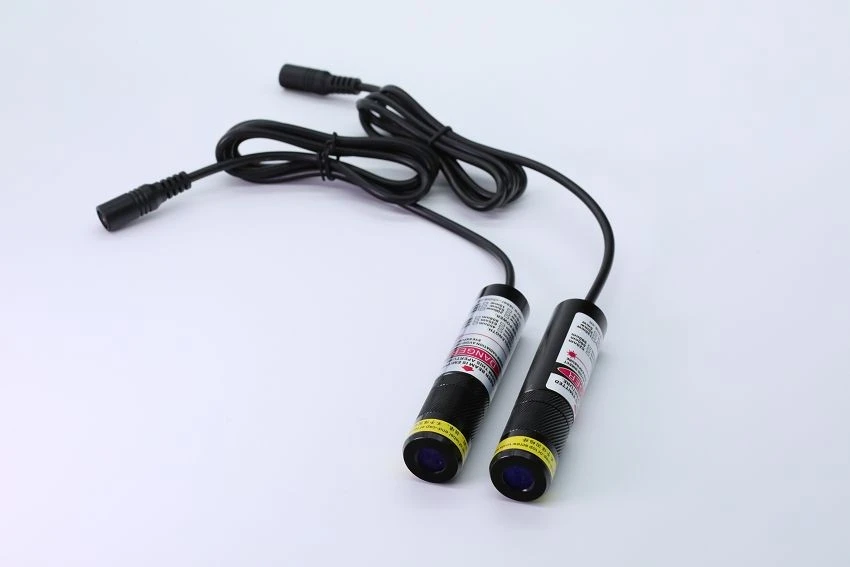

Product Introduction
The High Precision Cross Line Laser Module is designed for applications requiring accurate cross-line projection and reliable positioning references.
With optimized optical design and stable laser output, the module generates a precise cross pattern for equipment alignment, calibration and industrial positioning applications.
The compact structure and high optical stability make it suitable for integration into precision equipment, automation systems and customized positioning solutions.
Product Parameters
|
Item |
Specification |
|
Laser Type |
High Precision Cross Line Laser Module |
|
Wavelength |
405nm, 450nm, 520nm, 635nm, 650nm |
|
Output Power |
1-10mW / 10-500mW |
|
Laser Pattern |
Cross |
|
Working Distance |
Adjustable / Fixed / Customized |
|
Line Straightness |
≤0.1% |
|
Fan Angle |
5°~130° |
|
Operating Current |
10-90mA / 60-300mA |
|
Operating Voltage |
3-5V, 12V, 24V |
|
Control Function |
TTL Switch (Optional) |
|
Housing Material |
Copper, Aerospace Aluminum |
|
Operating Temperature |
-10~50℃ |
|
Storage Temperature |
-40~85℃ |
|
Lifetime |
≥10000h |
|
Accessories |
Industrial Bracket, Power Supply, Cable Extension |
Product Advantages
|
Advantage |
Description |
|
High Accuracy |
Provides precise cross-line positioning reference |
|
Clear Cross Pattern |
Easy identification for alignment and adjustment |
|
Stable Output |
Maintains consistent optical performance |
|
Easy Integration |
Compact structure for industrial equipment |
|
Customizable Design |
Supports optical and mechanical customization |
Product Features
High Precision Cross Projection
The optimized optical system provides a clear and accurate cross laser pattern for precise positioning and alignment.
Stable Optical Performance
High-quality optical components ensure stable laser output, consistent brightness and reliable operation during long-term use.
Accurate Alignment Reference
The cross laser pattern provides a clear reference point for equipment adjustment and positioning.
Compact Integration Design
The compact housing structure allows easy installation into different industrial equipment.
Flexible Customization
Supports customization of wavelength, output power, optical angle and mechanical structure according to application requirements.
Applications
Precision Positioning
Providing accurate cross references for precision equipment positioning.
01
Equipment Alignment
Helping achieve accurate alignment during installation and adjustment.
02
Automation Equipment
Used as a positioning assistant in automated machinery.
03
Measurement Instruments
Supporting accurate alignment requirements in measuring devices.
04
Industrial Processing Equipment
Providing positioning references for assembly and processing operations.
05
Customization Options
Dershine Laser provides customized high precision cross line laser solutions for different industrial positioning requirements.
Customization options include:
- Laser wavelength
- Output power
- Cross angle
- Working distance
-
Line width
-
Housing structure
-
Cable configuration
