Product Introduction

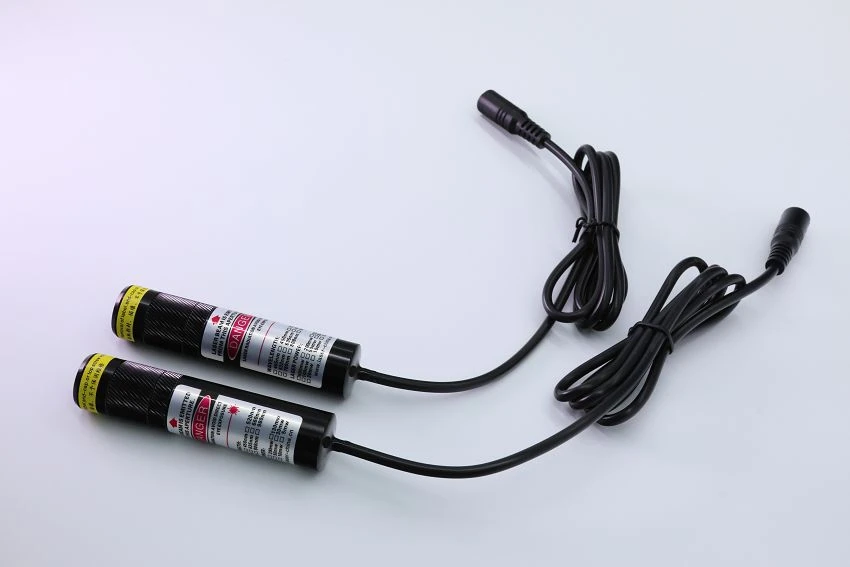

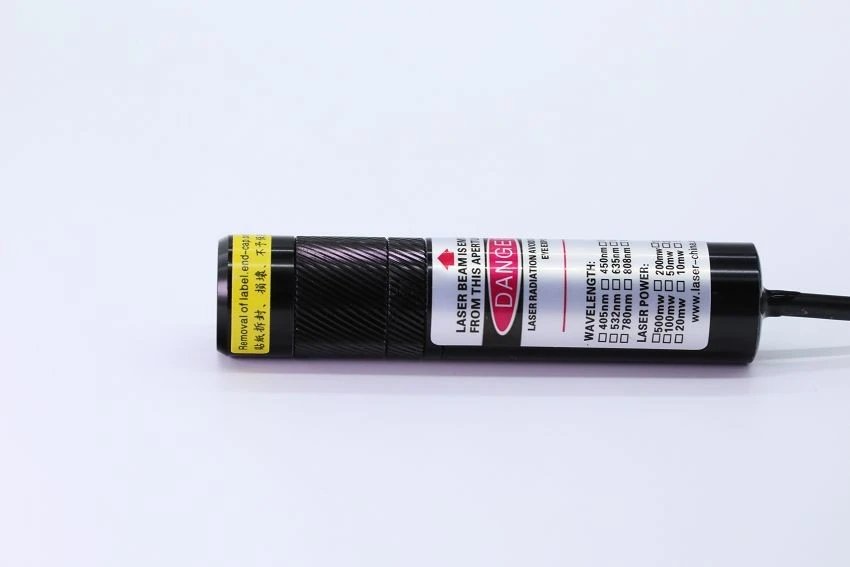

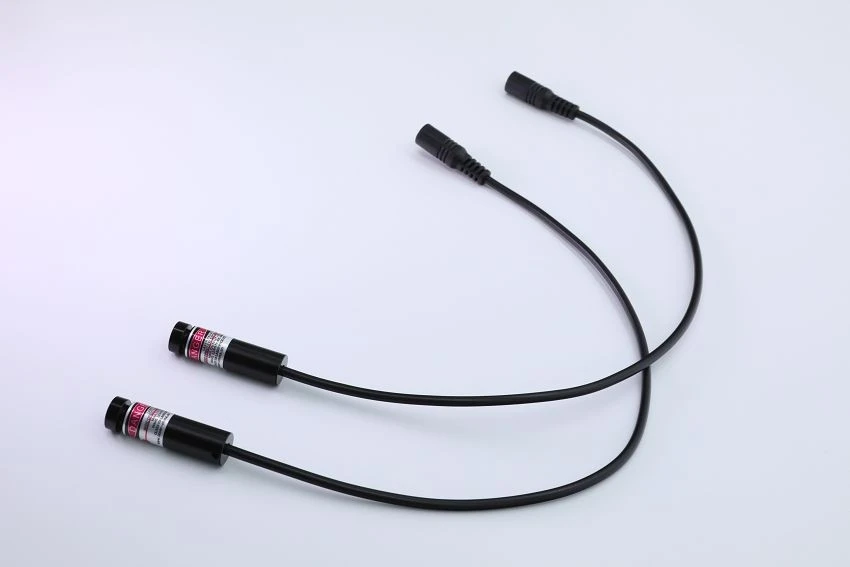

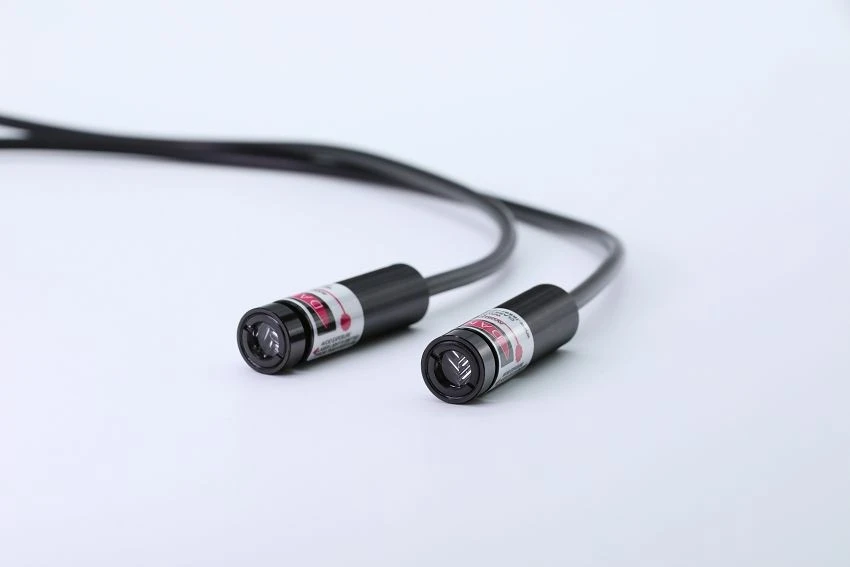

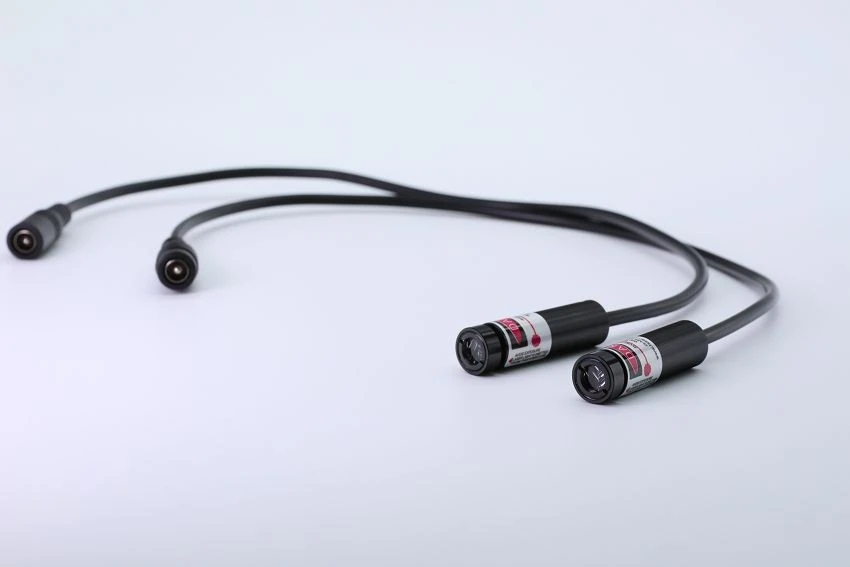

Red Cross Line Laser Modules provide a simple and practical laser reference solution for industrial positioning applications.
By combining horizontal and vertical laser lines, the module creates a clear cross point that helps users confirm direction, position and alignment during equipment installation and operation.
These modules are commonly integrated into industrial machines, assembly equipment, measuring devices and positioning systems where a stable visual reference is required.
Compared with single-direction laser projection, the cross line pattern provides additional alignment information, making it easier for operators to adjust components and complete machine setup.
Dershine Laser supports customized laser module solutions according to different application requirements. Customers can select suitable configurations based on working distance, installation space, electrical requirements and equipment structure.
We provide support from sample testing to mass production, helping customers complete laser integration smoothly.
Product Parameters
|
Item |
Specification |
|
Beam Pattern |
Cross Line |
|
Wavelength |
520nm / 635nm / 650nm / 660nm |
|
Output Power |
1–10mW / 10–500mW |
|
Working Distance |
Adjustable / Fixed (Customizable) |
|
Line Straightness |
≤0.1% |
|
Fan Angle |
5°–110° |
|
Operating Current |
10–90mA / 60–300mA |
|
Operating Voltage |
3–5V / 12V / 24V |
|
Control Function |
TTL Switch (Optional) |
|
Housing Material |
Brass / Aerospace Aluminum |
|
Operating Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 85℃ |
|
Lifetime |
≥10000 Hours |
|
Accessories |
Industrial Bracket, Dedicated Power Supply, Splitter Cable / Extension Cable |
Product Advantages
|
Advantage |
Description |
|
High Accuracy |
Provides precise cross-line positioning reference |
|
Clear Cross Pattern |
Easy identification for alignment and adjustment |
|
Stable Output |
Maintains consistent optical performance |
|
Easy Integration |
Compact structure for industrial equipment |
|
Customizable Design |
Supports optical and mechanical customization |
Why Choose Red Cross Line Laser Modules?
Reliable Positioning Reference
The red cross projection provides a clear reference for industrial equipment adjustment, helping operators quickly check the relative position between components.
Simple Machine Adjustment
The horizontal and vertical reference lines make machine alignment easier during installation, maintenance and production adjustment.
Flexible Equipment Integration
The compact laser module design allows integration into different machines and instruments with limited installation space.
Customized Configuration
Laser wavelength, output power, housing size, cable type and electrical configuration can be adjusted according to project requirements.
