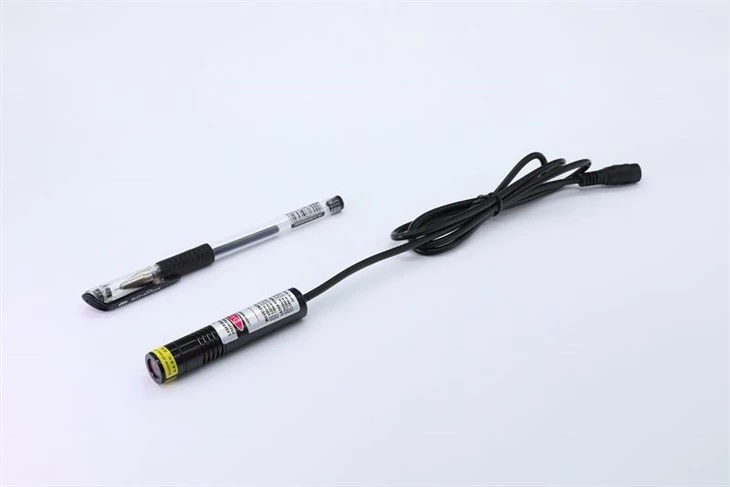

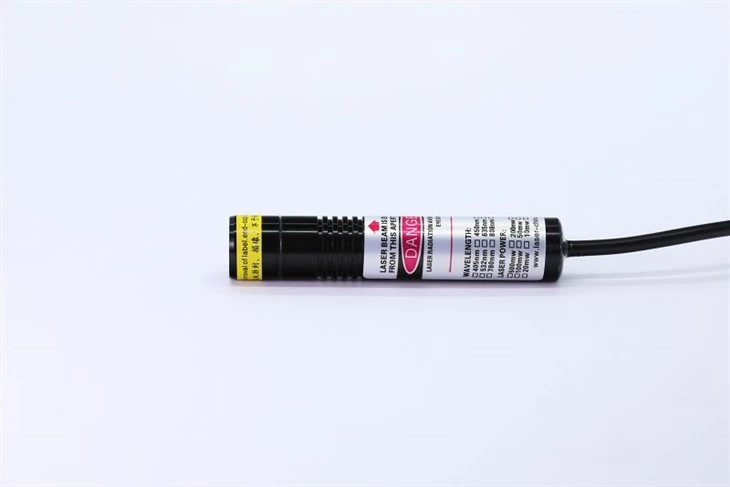

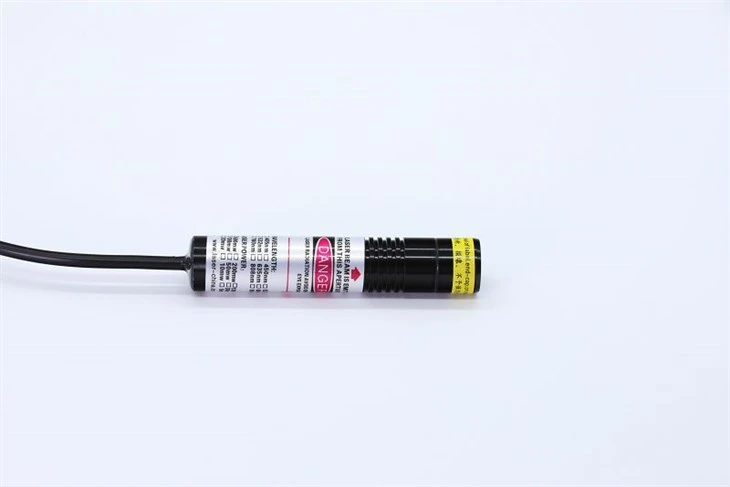

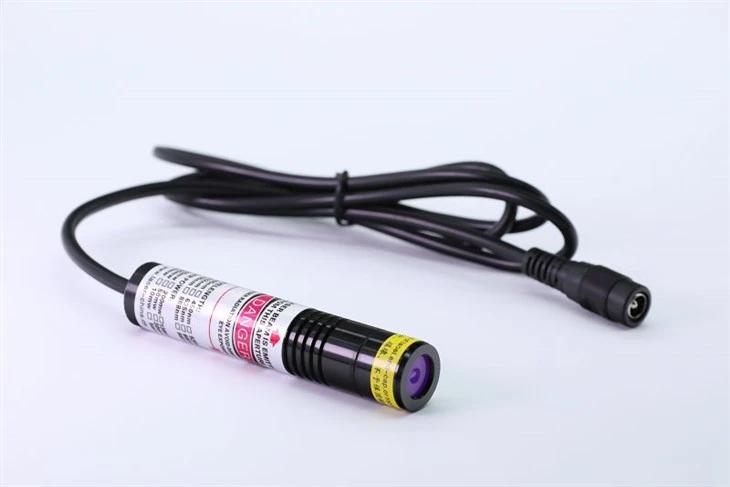

Product Introduction
The Infrared Line Laser Module provides an invisible infrared laser line for industrial positioning and alignment applications.
With stable optical output and precise line projection, the module helps achieve accurate positioning marks in equipment where visible laser lines are not required.
The compact design and flexible configuration make it suitable for integration into industrial machines, automation equipment and customized positioning systems.
Product Parameters
|
Item |
Specification |
|
Laser Type |
Infrared Line Laser Module |
|
Wavelength |
808nm, 980nm (Customized) |
|
Output Power |
1-10mW / 10-500mW |
|
Laser Pattern |
Line |
|
Working Distance |
Adjustable / Fixed / Customized |
|
Line Straightness |
≤0.1% |
|
Fan Angle |
5°~130° |
|
Operating Current |
10-90mA / 60-300mA |
|
Operating Voltage |
3-5V, 12V, 24V |
|
Control Function |
TTL Switch (Optional) |
|
Housing Material |
Copper, Aerospace Aluminum |
|
Operating Temperature |
-10~50℃ |
|
Storage Temperature |
-40~85℃ |
|
Lifetime |
≥10000h |
|
Accessories |
Industrial Bracket, Power Supply, Cable Extension |
Product Features
Invisible Infrared Laser Line
The infrared laser line provides a hidden positioning reference for applications requiring invisible marking or alignment.
Stable Line Projection
Optimized optical design ensures stable laser output and consistent line quality during operation.
Accurate Positioning Performance
The clear and precise line projection helps improve positioning accuracy in industrial equipment.
Easy Equipment Integration
Compact housing design allows convenient installation into different machines and positioning systems.
Applications
- Industrial Positioning
- Equipment Alignment
- Automation Machinery
- Cutting Machine Positioning
-
Measurement Equipment
