Product Introduction

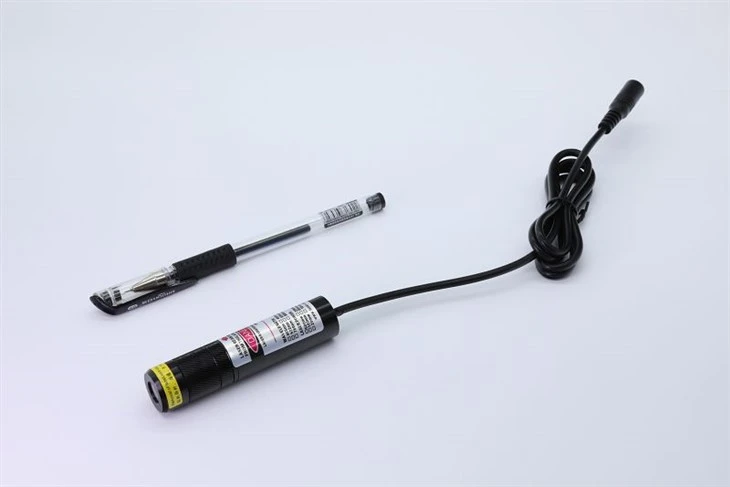

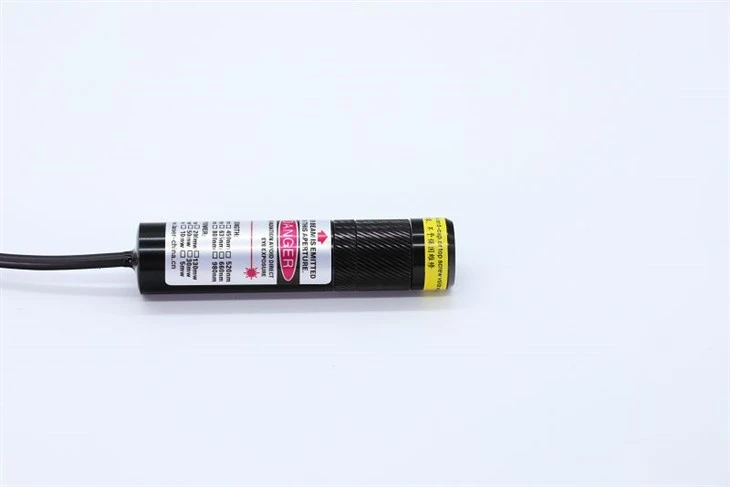

A green line laser module converts the laser beam into a visible straight line. When installed above or beside the working area, the line provides a direct reference for material placement, cutting, folding, sewing and equipment alignment.
Our current product range is mainly based on 520nm green laser sources. Available optical angles include narrow-angle, standard-angle and wide-angle configurations. These options are used to match different installation heights and required line lengths.
For example, a narrow fan angle is suitable when the machine needs a shorter and more concentrated line at a longer distance. A wide fan angle can cover a larger working area at a shorter or medium distance. The final line effect also depends on the target surface, ambient light, laser power and focus setting.
Both fixed-focus and adjustable-focus structures are available. Fixed-focus models are prepared for a confirmed installation distance. Adjustable-focus models allow the line to be corrected during machine development or on-site installation.

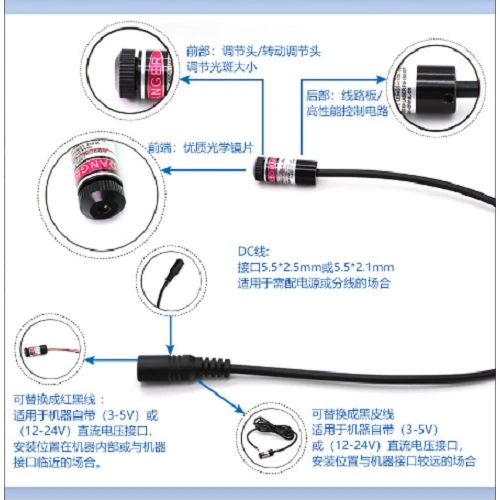

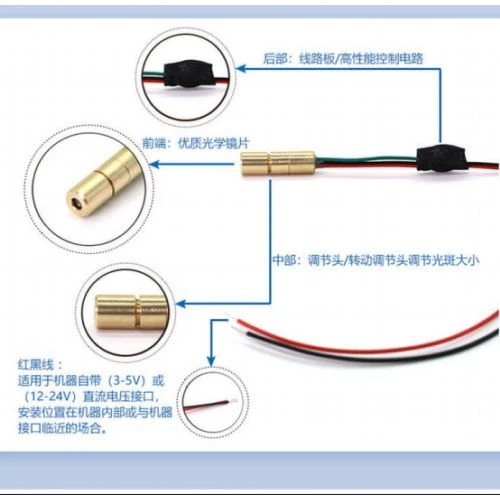

The housing diameter, working voltage, cable length, connector and wire sequence can be configured according to the customer's equipment. For a new project, we usually check the working distance, required line length and available installation space before recommending a model.
Product Parameters
|
Item |
Specification |
|
Product Type |
Green Line Laser Module |
|
Beam Pattern |
Line |
|
Typical Wavelength |
520nm |
|
Optional Wavelength |
515nm, subject to the actual model |
|
Output Power |
Confirmed according to working distance, line length and ambient light |
|
Fan Angle |
10° / 60° / 70° / 110° and other options |
|
Focus Type |
Fixed Focus / Adjustable Focus |
|
Working Distance |
Configured according to the model and project |
|
Line Length |
Determined by fan angle and working distance |
|
Line Width |
Confirmed according to focus, working distance and optical design |
|
Driver Mode |
CW / APC, with TTL available for selected models |
|
Operating Voltage |
3–5V / 5V / 12–24V |
|
Housing Diameter |
Φ9mm / Φ10mm / Φ12mm and other sizes |
|
Housing Material |
Brass / Black Aluminum |
|

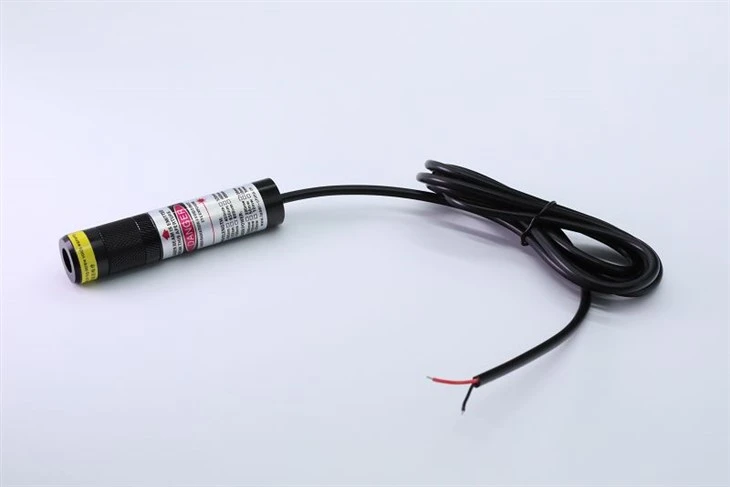

Cable |
Standard cable or customized for the equipment |
|

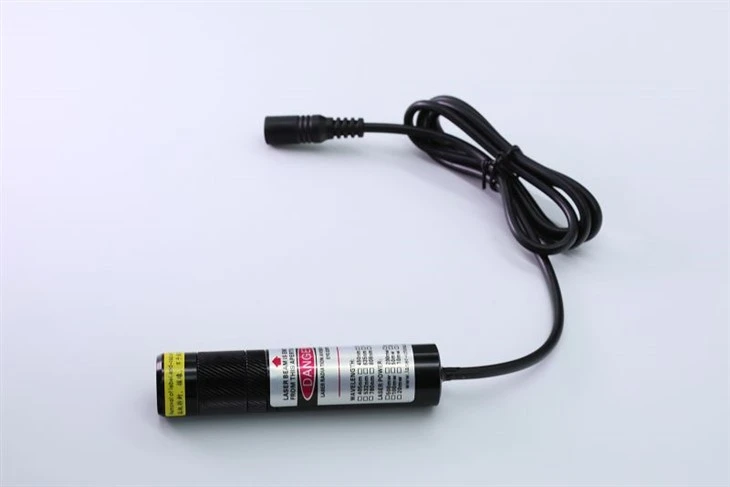

Connector |
Configured according to the equipment interface |
|
Protection |
Reverse-polarity protection and interference protection |
|
Customization |
Wavelength, power, fan angle, focus, housing, cable and connector |
For a new project, please send us the working distance, required line length, target material, installation dimensions, operating voltage and estimated quantity.
A sample test is recommended when the equipment structure or working environment has not been finalized. The angle, focus and output can be reviewed after the first machine test.
Production and Quality Control
Production Process
Incoming Inspection → Laser Diode Assembly → Soldering → Power Adjustment → Optical Assembly → Line Adjustment → Aging Test → Line Inspection → Gluing → Appearance Inspection → Final Inspection → Warehousing
Line Adjustment
The line direction, focus and coverage are adjusted according to the confirmed working distance and fan angle.
Aging Test
The modules are powered for an aging test before final inspection. Output stability and electrical operation are checked during the process.
Final Inspection
Inspection items may include wavelength, output power, operating current, line shape, focus, cable connection, housing dimensions and appearance.
Inquiry Section
Tell Us About Your Application
Please send us:
- Working distance
- Required line length
- Target material
- Ambient-light condition
-
Installation dimensions
-
Operating voltage
-
Cable and connector requirement
-
Estimated order quantity
We will check the suitable wavelength, fan angle, focus and housing configuration for your equipment.
FAQ
Q: How do I choose the fan angle?
A: Please provide the working distance and required line length. We will use these two values to check the suitable angle.
Q: Can the focus be adjusted after installation?
A: Adjustable-focus models can be focused at the actual working distance. Fixed-focus models are adjusted during production.
Q: Why does the line look different on different materials?

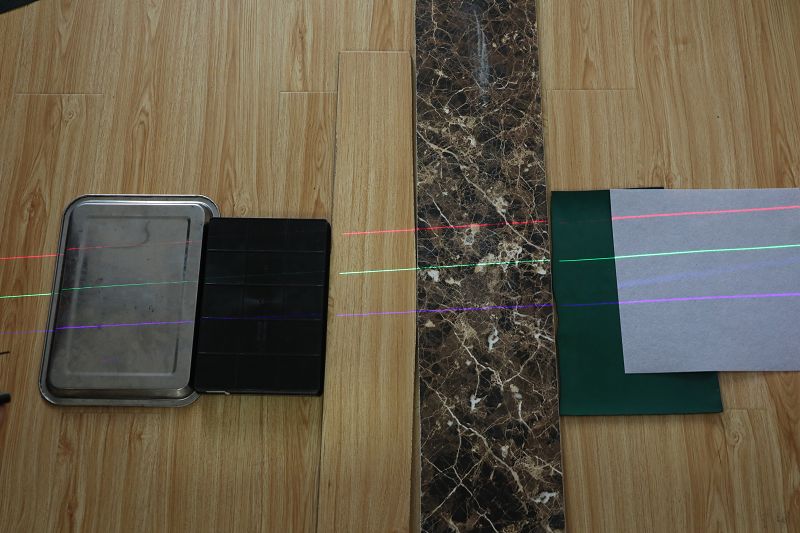

A: The result is affected by surface color, texture, reflection, ambient light, working distance and line length.
Q: Can you customize the cable and connector?
A: Yes. Please provide the required cable length, connector type, wire sequence and outlet direction.
