Product Introduction

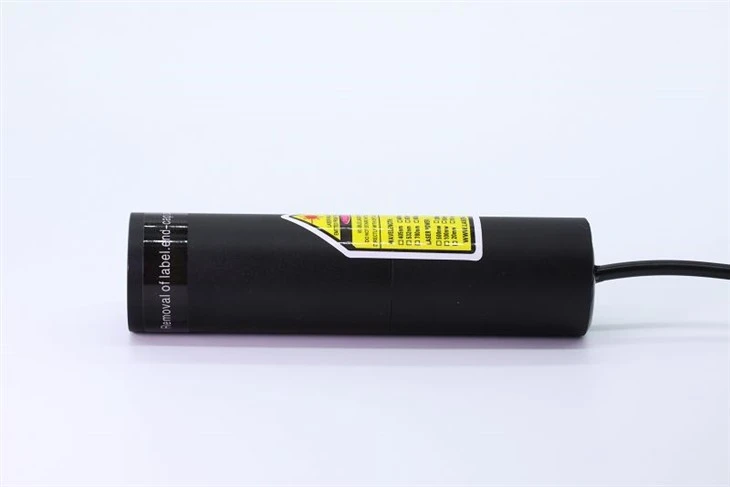

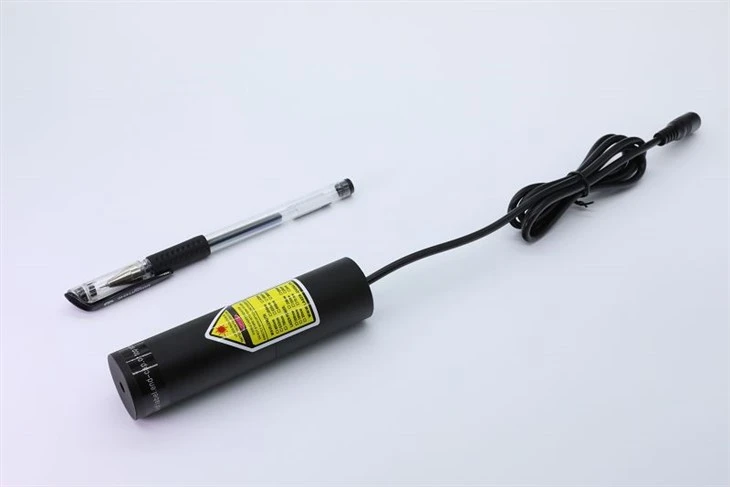

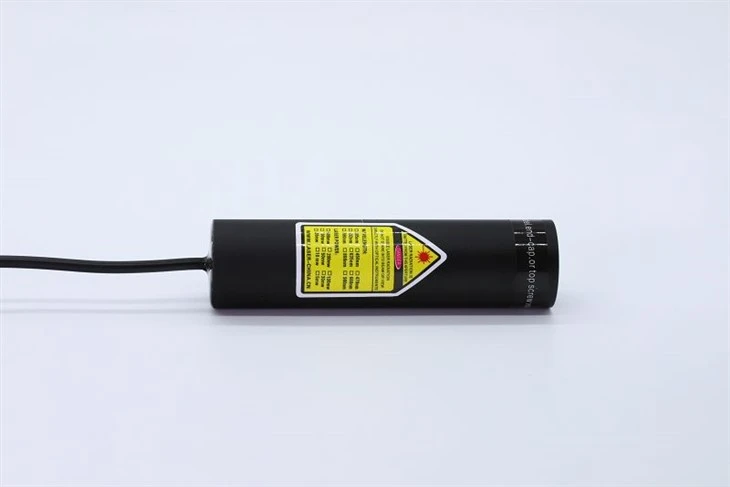

The High Precision Line Laser Module is designed for applications requiring accurate line projection and stable positioning references.
With optimized optical design and high-quality laser components, the module provides a straight and consistent laser line for precision alignment, equipment adjustment and industrial positioning.
The compact structure and reliable performance make it suitable for integration into precision equipment, automation systems and customized industrial applications.
Product Parameters
|
Item |
Specification |
|
Laser Type |
High Precision Line Laser Module |
|
Wavelength |
405nm, 450nm, 520nm, 635nm, 650nm |
|
Output Power |
1-10mW / 10-500mW |
|
Laser Pattern |
Line |
|
Working Distance |
Adjustable / Fixed / Customized |
|
Line Straightness |
≤0.1% |
|
Fan Angle |
5°~130° |
|
Operating Current |
10-90mA / 60-300mA |
|
Operating Voltage |
3-5V, 12V, 24V |
|
Control Function |
TTL Switch (Optional) |
|
Housing Material |
Copper, Aerospace Aluminum |
|
Operating Temperature |
-10~50℃ |
|
Storage Temperature |
-40~85℃ |
|
Lifetime |
≥10000h |
|
Accessories |
Industrial Bracket, Power Supply, Cable Extension |
Product Advantages
|
Advantage |
Description |
|
High Precision |
Provides accurate laser line reference for positioning |
|
High Straightness |
Maintains consistent and stable line projection |
|
Stable Output |
Ensures reliable performance during continuous operation |
|
Flexible Integration |
Suitable for various industrial equipment |
|
Customizable Design |
Supports optical and mechanical customization |
Product Features
High Precision Line Projection
The optimized optical structure provides a fine and stable laser line for accurate positioning and alignment.
Excellent Line Straightness
The laser line maintains high straightness and consistency, improving positioning accuracy in precision applications.
Stable Optical Output
Reliable laser performance ensures consistent brightness and stable operation during long-term use.
Compact Integration Design
The compact housing design allows easy installation into precision equipment and industrial systems.
Flexible Customization
Supports customized solutions according to different requirements, including optical parameters and mechanical structures.
Applications
Precision Positioning
Providing accurate positioning references for precision equipment.
01
Equipment Alignment
Helping achieve accurate alignment during equipment installation and adjustment.
02
Automation Systems
Used as a positioning assistant in automated machinery.
03
Measurement Equipment
Supporting precise positioning requirements in measuring instruments.
04
Industrial Processing Equipment
Providing reliable laser references for processing and assembly operations.
05
Product Advantages
|
Advantage |
Description |
|
Clear Visibility |
Provides an easy-to-recognize visible laser line for positioning |
|
Stable Output |
Ensures consistent optical performance during continuous operation |
|
Flexible Configuration |
Supports different wavelengths, power levels and optical designs |
|
Easy Integration |
Compact structure suitable for various equipment installations |
|
Long Service Life |
Designed for reliable industrial operation |
Customization Options
Dershine Laser provides customized high precision line laser solutions for different industrial positioning requirements.
Customization options include:
- Laser wavelength
- Output power
- Line width
- Fan angle
-
Working distance
-
Housing structure
-
Cable configuration
