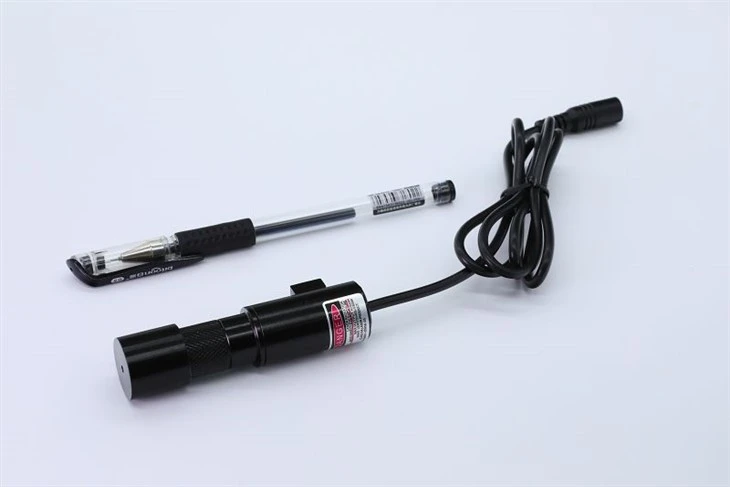

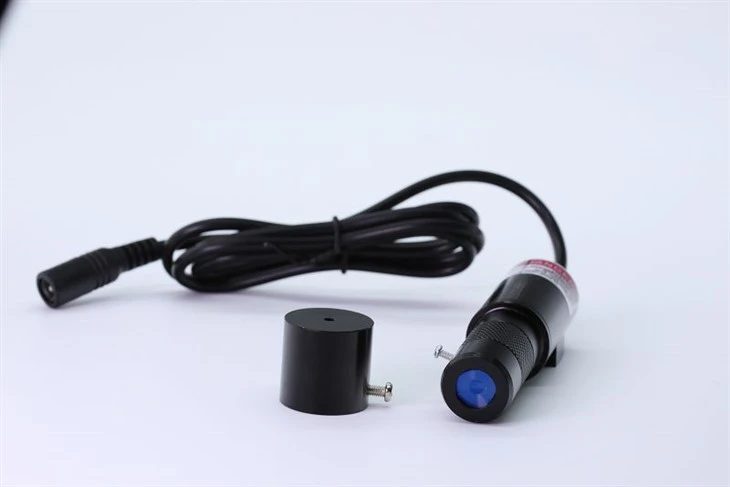

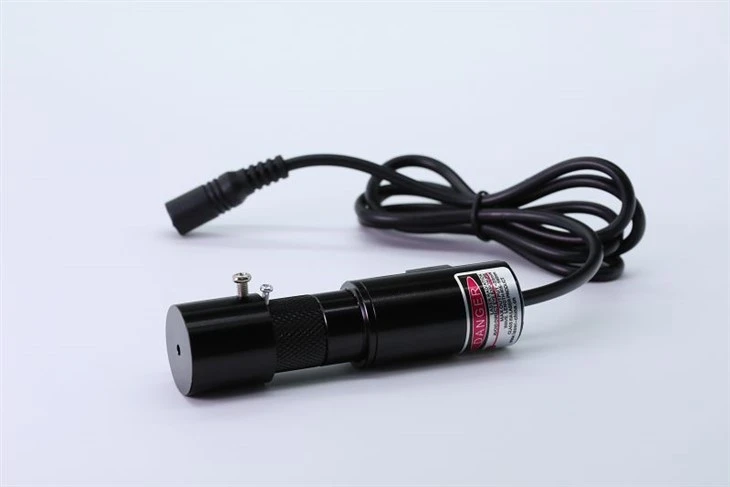

Red Line Laser Modules

A red line laser module converts the laser beam into a straight reference line. When installed above, beside or inside a machine, the projected line can show a cutting position, assembly path, alignment direction or inspection reference.

Our red line laser range mainly covers 635nm,638nm and 650nm wavelengths. Different optical lenses can produce narrow, standard or wide fan angles. The suitable configuration depends on the working distance and the required line length.

For a short-distance application, the customer may need a wide line covering a larger work area. For a longer-distance application, a smaller fan angle may provide a more concentrated line. The final result is also affected by the target material, ambient light, focus setting and selected output power.

Fixed-focus models are adjusted for a confirmed working distance. Adjustable-focus models are more convenient during equipment development or installation. CW, analog, digital or other control options can also be evaluated according to the machine.

Housing diameter, housing length, operating voltage, cable, connector and wire sequence can be prepared according to the customer's equipment. For a new project, we normally confirm the actual working distance, required line length and available installation space before recommending a model.

Parameter Note

The table shows the general configuration range of the series. Final values are subject to the confirmed specification sheet, drawing or approved sample.

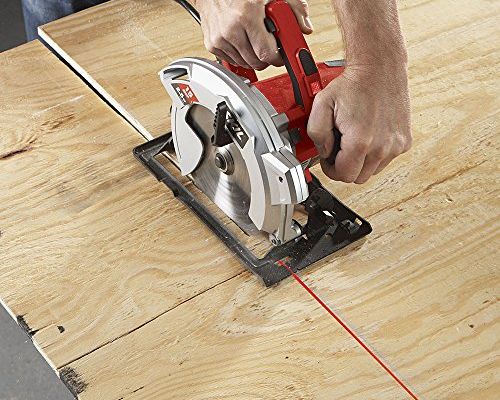

Woodworking Machinery

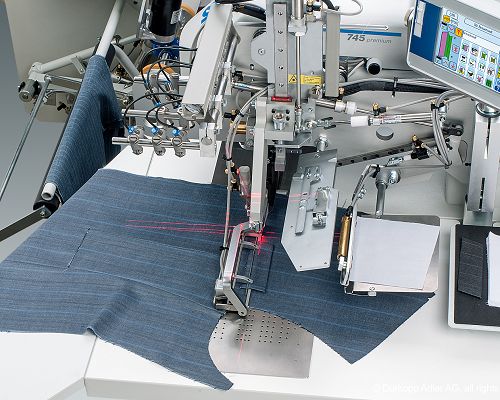

Garment Sewing

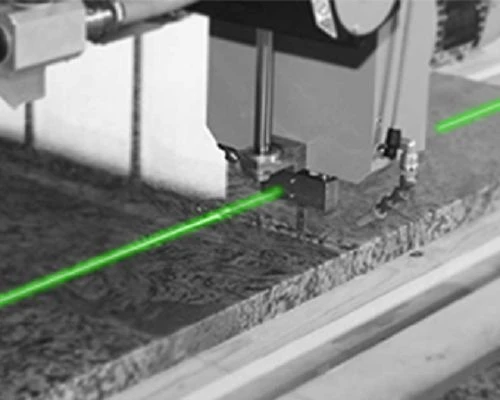

Stone Cutting
