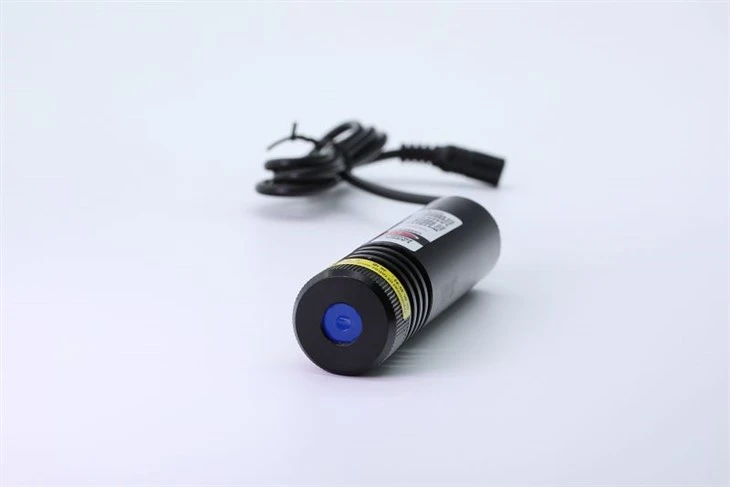

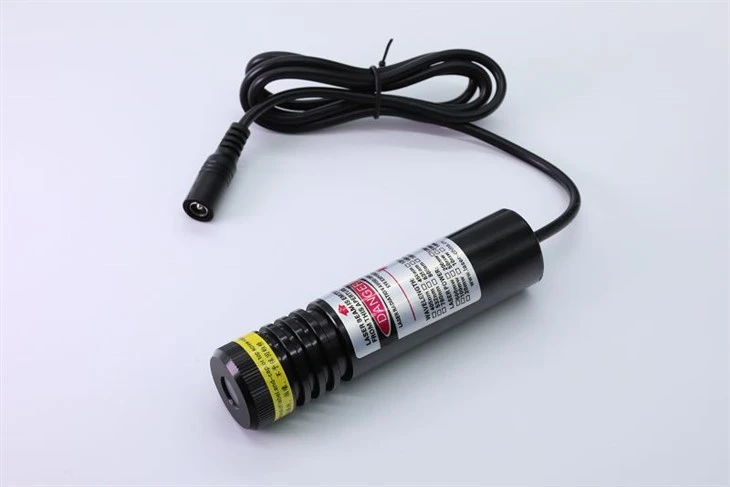

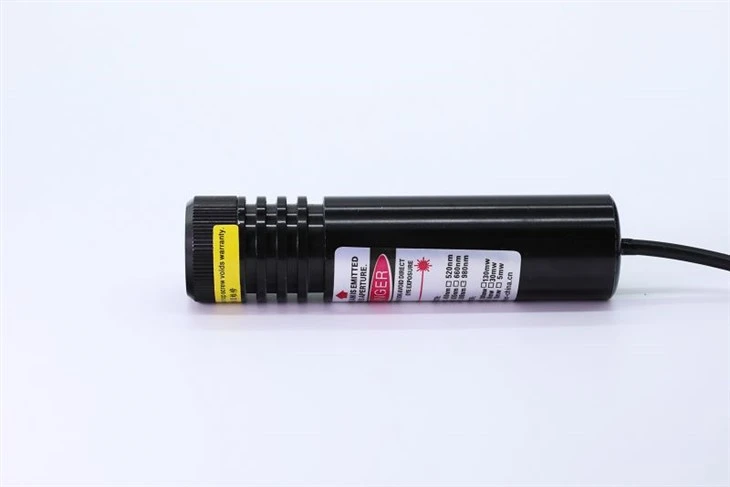

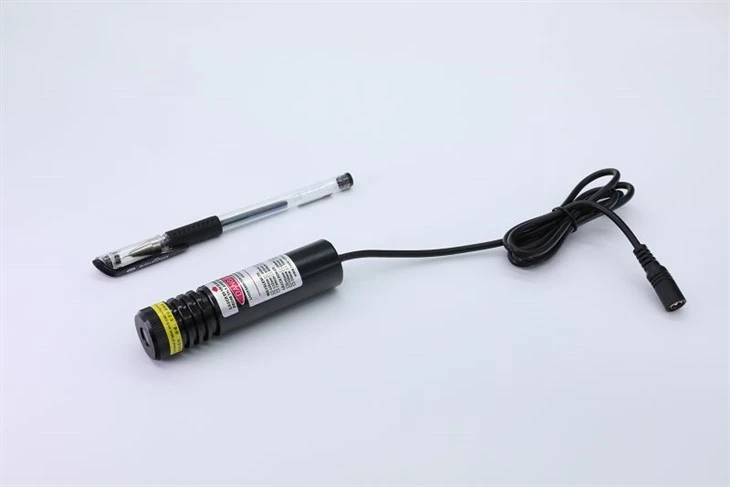

Product Introduction
The Visible Line Laser Module provides a clear and stable visible laser line for industrial positioning, alignment and marking applications.
Using optimized optical design and reliable laser technology, the module generates a precise line reference for equipment adjustment, installation positioning and operation guidance.
With multiple wavelength options, flexible output power configurations and compact mechanical design, it can be easily integrated into different industrial equipment and customized positioning systems.
Product Parameters
|
Item |
Specification |
|
Laser Type |
Visible Line Laser Module |
|
Wavelength |
520nm, 635nm, 650nm, 660nm |
|
Output Power |
1-10mW / 10-500mW |
|
Laser Pattern |
Line |
|
Working Distance |
Adjustable / Fixed / Customized |
|
Line Straightness |
≤0.1% |
|
Fan Angle |
5°~130° |
|
Operating Current |
10-90mA / 60-300mA |
|
Operating Voltage |
3-5V, 12V, 24V |
|
Control Function |
TTL Switch (Optional) |
|
Housing Material |
Copper, Aerospace Aluminum |
|
Operating Temperature |
-10~50℃ |
|
Storage Temperature |
-40~85℃ |
|
Lifetime |
≥10000h |
|
Accessories |
Industrial Bracket, Power Supply, Cable Extension |
Product Features
Clear Visible Laser Projection
The visible laser line provides an intuitive positioning reference, allowing operators to quickly identify alignment positions and improve working efficiency.
Stable Optical Performance
High-quality optical components ensure stable laser output, consistent line brightness and reliable performance during long-term operation.
Multiple Configuration Options
Different wavelengths, output powers and fan angles are available to meet various industrial positioning requirements.
Compact Industrial Design
The compact housing structure allows easy installation and integration into different types of industrial equipment.
Flexible Customization
Support customized solutions according to customer requirements, including optical parameters, mechanical structure and cable configuration.
Applications
Industrial Positioning
Providing clear laser references for equipment installation, adjustment and positioning.
01
Equipment Alignment
Helping operators achieve accurate alignment during machine setup and operation.
02
Automation Machinery
Used as a visual positioning assistant in automated production equipment.
03
Cutting and Processing Equipment
Providing positioning references for cutting, processing and assembly operations.
04
Measurement Instruments
Supporting accurate positioning and alignment in measuring devices.
05
Product Advantages
|
Advantage |
Description |
|
Clear Visibility |
Provides an easy-to-recognize visible laser line for positioning |
|
Stable Output |
Ensures consistent optical performance during continuous operation |
|
Flexible Configuration |
Supports different wavelengths, power levels and optical designs |
|
Easy Integration |
Compact structure suitable for various equipment installations |
|
Long Service Life |
Designed for reliable industrial operation |
Customization Options
Dershine Laser provides customized visible line laser solutions according to different industrial positioning requirements.
Customization options include:
- Laser wavelength
- Output power
- Fan angle
- Working distance
-
Line width
-
Housing structure
-
Cable configuration
