Product Introduction

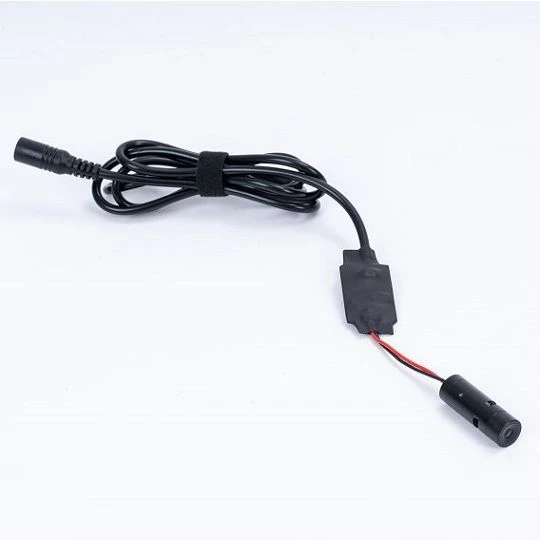

The 7-Line Structured Light Laser Module combines Powell lens technology with DOE optical elements to generate uniform multi-line laser patterns.
The Powell lens optimizes laser energy distribution and improves brightness uniformity among multiple laser lines, providing stable structured light output for 3D scanning and machine vision applications.
With compact design and reliable optical performance, this module is suitable for industrial inspection, 3D measurement and vision system integration.
Technical Parameters
| Laser Pattern | 7 Lines |
| Wavelength | 436-456nm |
| Fan Angle | 40° × 20.4° |
| Working Distance | 170-230mm |
| Line Width | ≤150μm @200mm |
| Single Line Uniformity | ≥65% |
| Multi-Line Uniformity | ≥70% |
| Line Straightness | ≤0.45% |
| Operating Voltage | 4.6V |
| Drive Mode | ACC Constant Current |
| Lifetime | 8000-10000h |
Product Features
High Uniformity Multi-Line Projection
Powell lens technology improves beam energy distribution and maintains consistent brightness among multiple laser lines.
Stable Structured Light Pattern
DOE optical elements generate multiple laser lines with stable spacing and clear projection patterns for accurate image acquisition.
Compact Optical Design
The compact housing design allows easy integration into 3D vision systems and industrial equipment.
Reliable Industrial Performance
Stable optical output and long service life ensure reliable operation in industrial applications.
Applications
3D Profile Scanning
Machine Vision Inspection
Industrial Measurement
Surface Inspection
Customization
Dershine Laser provides customized structured light laser solutions according to different application requirements.
Customization options include:
- Laser wavelength
- Line number
- Fan angle
- Working distance
-
Housing structure
