Product Introduction

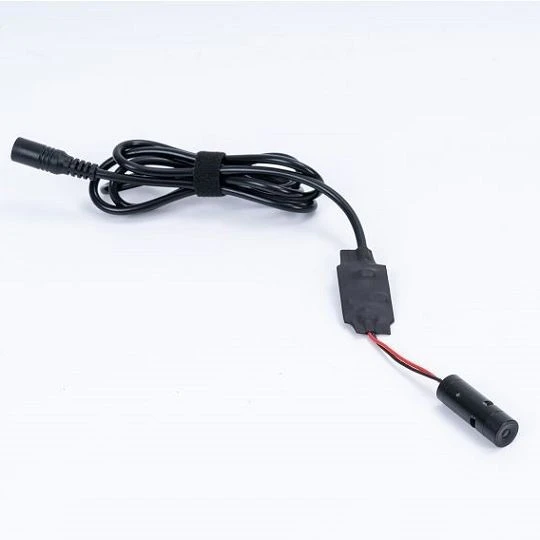

The Custom Structured Light Laser Module is designed for applications requiring customized laser patterns and special structured light solutions.
Based on different application requirements, the module can be customized with different laser line numbers, projection patterns, optical configurations and mechanical designs.
With flexible optical design capability and stable laser performance, Dershine Laser provides customized structured light solutions for industrial equipment, measurement systems and specialized applications.
Technical Parameters
|
Item |
Specification |
|
Laser Type |
Custom Structured Light Laser Module |
|
Laser Pattern |
Customizable |
|
Wavelength |
405nm, 450nm, 520nm, 635nm, 650nm, 808nm (Customized) |
|
Output Power |
Customized |
|
Number of Lines |
Customized |
|
Line Spacing |
Customized |
|
Projection Pattern |
Multi-Line / Cross / Dot Array / Custom Pattern |
|
Working Distance |
Customized |
|
Projection Angle |
Customized |
|
Line Straightness |
≤0.1% |
|
Operating Voltage |
3-5V, 12V, 24V |
|
Drive Mode |
ACC Constant Current |
|
Control Mode |
TTL / Analog / PWM (Optional) |
|
Operating Temperature |
-10~50℃ |
|
Lifetime |
≥10000h |
Product Advantages
|
Advantage |
Description |
|
Custom Optical Design |
Supports customized laser patterns and projection solutions |
|
Flexible Configuration |
Adjustable line number, spacing and optical parameters |
|
Stable Performance |
Reliable laser output for industrial applications |
|
Complete Customization |
Supports optical and mechanical customization |
|
OEM / ODM Capability |
Provides customized laser module solutions |
Product Features
Custom Laser Pattern Design
Supports customized structured light patterns including multi-line, cross-line, dot array and special projection patterns.
Flexible Line Number Configuration
Laser line quantity, spacing and arrangement can be customized according to different application requirements.
Optimized Optical Performance
Professional optical design ensures stable projection quality, accurate pattern arrangement and reliable operation.
Customized Mechanical Design
Supports customization of housing structure, mounting method and cable configuration.
OEM / ODM Support
Provides complete customization services from optical parameters to finished laser modules.
Applications
3D Measurement Systems
Providing customized structured light patterns for depth measurement and 3D applications.
01
Industrial Positioning
Creating customized laser references for equipment positioning and alignment.
02
Automation Equipment
Integrated into specialized industrial systems requiring customized laser projection.
03
Measurement Instruments
Providing dedicated structured light solutions for measurement applications.
04
Special Optical Applications
Supporting customized laser projection requirements in different industries.
05
Customization
Dershine Laser provides complete customized structured light laser solutions according to customer requirements.
Customization options include:
- Laser wavelength
- Output power
- Laser line number
- Line spacing
-
Projection pattern
-
Working distance
-
Projection angle
-
Housing structure
-
Cable configuration
