Product Introduction

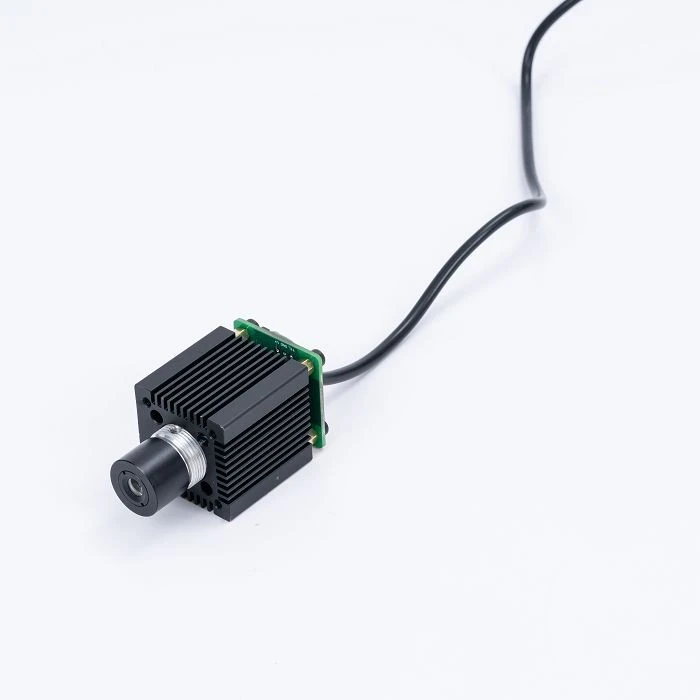

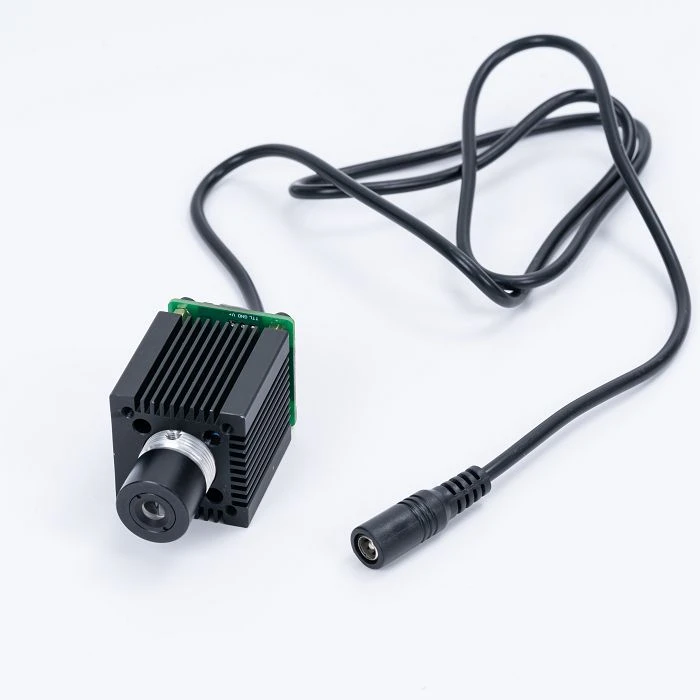

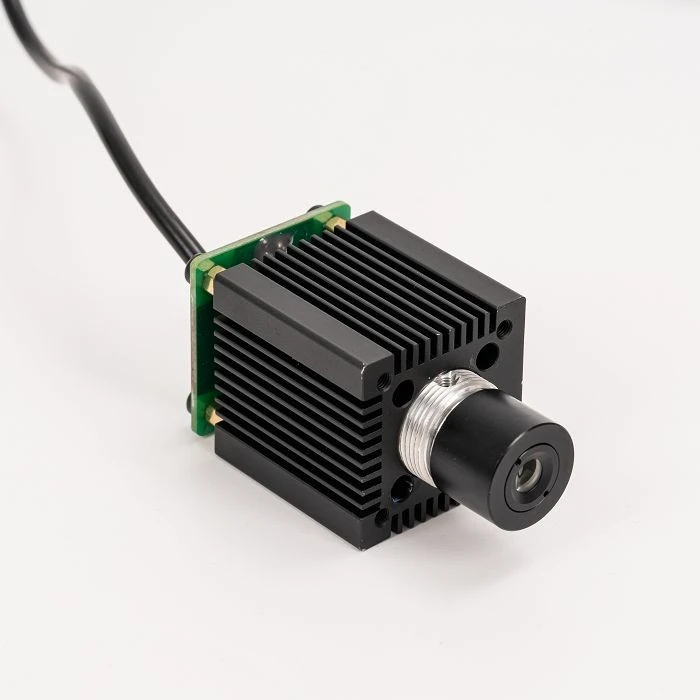

The 49-Line Structured Light Laser Module combines Powell lens technology with DOE optical elements to generate high-density multi-line structured light patterns.
The Powell lens optimizes laser energy distribution and improves brightness consistency across multiple laser lines, providing uniform and stable structured light output for advanced 3D vision applications.
With 49 structured laser lines, the module provides high-density optical information for detailed surface reconstruction, precision measurement and complex object inspection.
The optimized optical design ensures stable laser pattern projection and reliable performance, making it suitable for high-precision 3D scanning systems and industrial inspection equipment.
Technical Parameters
| Laser Pattern | 49 Lines |
| Wavelength | 436-456nm |
| Fan Angle | 55° × 35° |
| Working Distance | 150-500mm |
| Line Width | ≤230μm @300mm |
| Single Line Uniformity | ≥65% |
| Multi-Line Uniformity | ≥70% |
| Line Straightness | ≤0.45% |
| Operating Voltage | 4.6V |
| Drive Mode | ACC Constant Current |
| Lifetime | 8000-10000h |
Product Features
High Density Multi-Line Projection
The DOE optical element generates 49 structured laser lines, providing rich optical information for detailed 3D data acquisition.
Uniform Brightness Distribution
Powell lens technology improves beam energy distribution and maintains consistent brightness among multiple laser lines.
Enhanced 3D Reconstruction Capability
The high-density structured light pattern helps imaging systems capture more surface details and improve measurement accuracy.
Stable Industrial Performance
The reliable optical design supports continuous operation in machine vision and automated inspection systems.
Applications
3D Profile Scanning
01
High Precision Machine Vision
02
Industrial Measurement
03
Surface Inspection
04
3D Reconstruction
05
Customization
Dershine Laser provides customized structured light laser solutions according to different application requirements.
Customization options include:
- Laser wavelength
- Line number
- Fan angle
- Working distance
-
Laser pattern
-
Housing structure
