Product Introduction

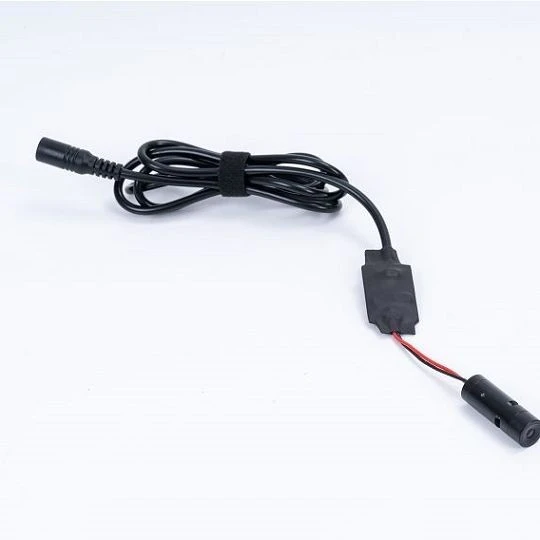

The 101-Line Structured Light Laser Module combines Powell lens technology with DOE optical elements to generate ultra high-density structured light patterns.
The Powell lens optimizes laser energy distribution and improves brightness consistency across a large number of laser lines, providing stable and uniform structured light output for advanced 3D vision systems.
With 101 structured laser lines, the module provides extremely rich optical information for detailed surface reconstruction, high-precision measurement and complex object inspection.
The optimized optical design ensures stable laser pattern projection and reliable performance, making it suitable for advanced 3D scanning systems, precision inspection equipment and industrial vision applications.
Technical Parameters
| Laser Pattern | 101 Lines |
| Wavelength | Customized |
| Fan Angle | Customized |
| Working Distance | Customized |
| Line Width | Customized |
| Single Line Uniformity | Customized |
| Multi-Line Uniformity | Customized |
| Line Straightness | Customized |
| Operating Voltage | Customized |
| Drive Mode | ACC Constant Current |
| Lifetime | 8000-10000h |
Product Features
Ultra High Density Multi-Line Projection
The DOE optical element generates 101 structured laser lines, providing highly detailed optical information for 3D data acquisition and surface analysis.
Excellent Brightness Uniformity
Powell lens technology improves laser energy distribution and maintains consistent brightness among multiple laser lines.
Detailed 3D Surface Reconstruction
The high-density structured light pattern helps imaging systems capture more surface details and improve reconstruction accuracy.
Stable Optical Performance
The reliable optical design ensures consistent laser output during long-term industrial operation.
Applications
High Precision 3D Scanning
01
Machine Vision Inspection
02
Industrial Measurement
03
Complex Surface Inspection
04
3D Reconstruction
05
Customization
Dershine Laser provides customized ultra high-density structured light solutions according to different application requirements.
Customization options include:
- Laser wavelength
- Line number
- Fan angle
- Working distance
-
Laser pattern
-
Housing structure
