Product Introduction

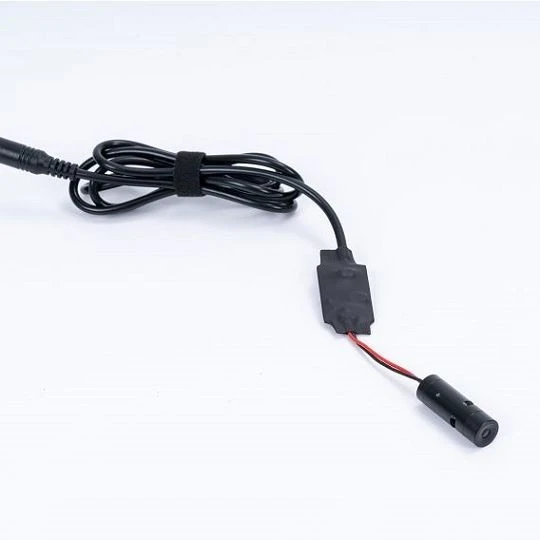

The 11-Line Structured Light Laser Module combines Powell lens technology with DOE optical elements to generate uniform multi-line structured light patterns.
The Powell lens improves laser energy distribution and enhances brightness consistency across multiple laser lines, providing stable optical output for 3D imaging and measurement systems.
With more structured light patterns compared with lower line-count solutions, the 11-line configuration provides richer surface information for 3D reconstruction and industrial inspection applications.
The compact optical design allows easy integration into machine vision systems, 3D scanners and automated inspection equipment.
Technical Parameters
| Laser Pattern | 11 Lines |
| Wavelength | Customized |
| Fan Angle | Customized |
| Working Distance | Customized |
| Line Width | Customized |
| Single Line Uniformity | Customized |
| Multi-Line Uniformity | Customized |
| Line Straightness | Customized |
| Operating Voltage | Customized |
| Drive Mode | ACC Constant Current |
| Lifetime | 8000-10000h |
Product Features
Multi-Line Structured Light Projection
The DOE optical element generates 11 structured laser lines with stable spacing and clear projection patterns, providing more measurement information for 3D vision systems.
Improved Brightness Uniformity
Powell lens technology optimizes the laser beam profile and maintains consistent brightness distribution across the projected laser lines.
Stable 3D Data Acquisition
The stable optical pattern helps cameras capture reliable surface information for 3D measurement and inspection.
Compact Integration Design
The compact structure allows flexible installation in different machine vision and industrial equipment.
Applications
3D Profile Scanning
01
Machine Vision Inspection
02
Industrial Measurement
03
Surface Defect Detection
04
3D Reconstruction
05
Customization
Dershine Laser provides customized structured light laser solutions according to different application requirements.
Customization options include:
- Laser wavelength
- Line number
- Fan angle
- Working distance
-
Laser pattern
-
Housing structure
Hot Tags: 11-line structured light laser modules, China 11-line structured light laser modules manufacturers, suppliers, factory
