Product Introduction

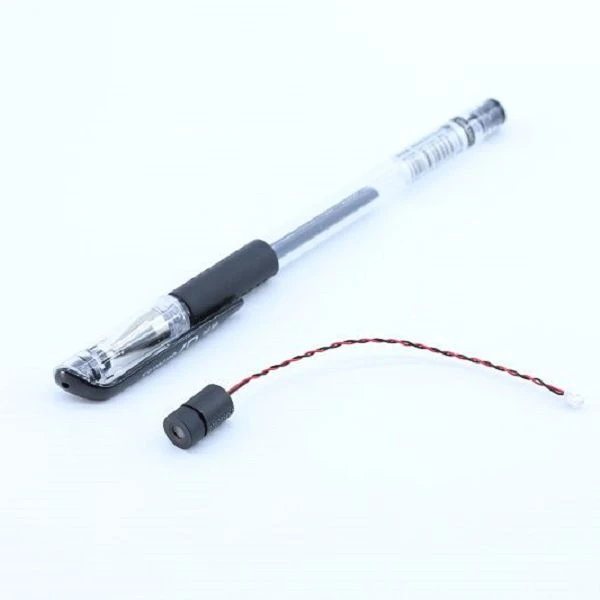

The 13-Line Structured Light Laser Module combines Powell lens technology with DOE optical elements to generate uniform multi-line structured light patterns.
The Powell lens optimizes laser energy distribution and improves brightness consistency across multiple laser lines, providing stable structured light output for 3D imaging and measurement systems.
With 13 structured laser lines, the module provides richer surface information compared with lower line-count solutions, making it suitable for 3D reconstruction, machine vision inspection and industrial measurement applications.
The compact optical design allows easy integration into automated inspection equipment and 3D vision systems.
Technical Parameters
| Laser Pattern | 13 Lines |
| Wavelength | 436-456nm |
| Fan Angle | 55° × 33.6° |
| Working Distance | 150-500mm |
| Line Width | ≤230μm @300mm |
| Single Line Uniformity | ≥65% |
| Multi-Line Uniformity | ≥70% |
| Line Straightness | ≤0.45% |
| Operating Voltage | 4.6V |
| Drive Mode | ACC Constant Current |
| Lifetime | 8000-10000h |
Product Features
Multi-Line Structured Light Projection
The DOE optical element generates 13 laser lines with stable spacing and clear projection patterns, providing more detailed optical information for 3D measurement.
High Brightness Uniformity
Powell lens technology improves beam energy distribution and maintains consistent brightness across multiple laser lines.
Stable 3D Imaging Performance
The stable structured light pattern helps cameras capture accurate surface profiles for 3D reconstruction and inspection.
Flexible System Integration
The compact design supports integration into different machine vision systems and industrial equipment.
Applications
3D Profile Scanning
01
Machine Vision Inspection
02
Industrial Measurement
03
Surface Defect Detection
04
3D Reconstruction
05
Customization
Dershine Laser provides customized structured light laser solutions according to different application requirements.
Customization options include:
- Laser wavelength
- Line number
- Fan angle
- Working distance
-
Laser pattern
-
Housing structure
