Product Introduction

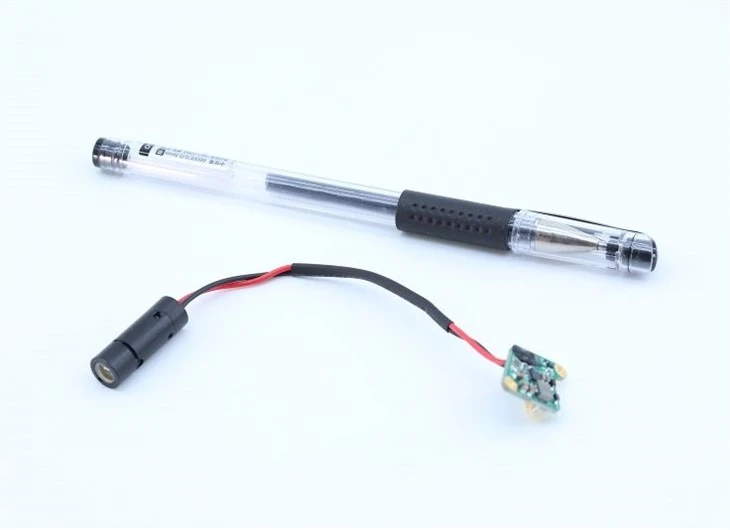

The 17-Line Structured Light Laser Module combines Powell lens technology with DOE optical elements to generate uniform multi-line structured light patterns.
The Powell lens optimizes laser energy distribution and improves brightness consistency among multiple laser lines, providing stable structured light output for 3D imaging and measurement systems.
With 17 structured laser lines and a wider projection pattern, the module provides richer surface information for 3D reconstruction, industrial inspection and machine vision applications.
The optimized optical design ensures stable laser pattern quality during operation, making it suitable for automated inspection equipment and 3D vision systems.
Technical Parameters
| Laser Pattern | 17 Lines |
| Wavelength | 436-456nm |
| Fan Angle | 55° × 40° |
| Working Distance | 170-230mm |
| Line Width | ≤150μm @200mm |
| Single Line Uniformity | ≥65% |
| Multi-Line Uniformity | ≥70% |
| Line Straightness | ≤0.45% |
| Operating Voltage | 4.6V |
| Drive Mode | ACC Constant Current |
| Lifetime | 8000-10000h |
Product Features
High Density Multi-Line Projection
The DOE optical element generates 17 structured laser lines with stable spacing, providing more detailed optical information for 3D measurement.
Uniform Brightness Distribution
Powell lens technology improves beam energy distribution and maintains consistent brightness across multiple laser lines.
Stable 3D Measurement Performance
The stable structured light pattern helps imaging systems capture accurate surface profiles for 3D reconstruction and inspection.
Flexible Industrial Integration
The compact design allows easy integration into different machine vision systems and industrial equipment.
Applications
3D Profile Scanning
01
Machine Vision Inspection
02
Industrial Measurement
03
Surface Inspection
04
3D Reconstruction
05
Customization
Dershine Laser provides customized structured light laser solutions according to different application requirements.
Customization options include:
- Laser wavelength
- Line number
- Fan angle
- Working distance
-
Laser pattern
-
Housing structure
