Product Introduction

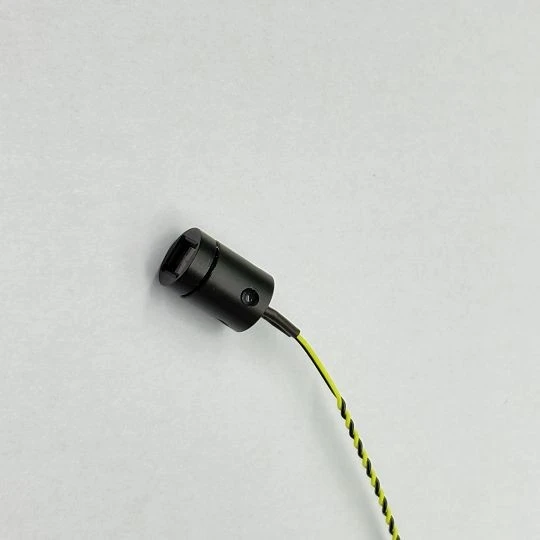

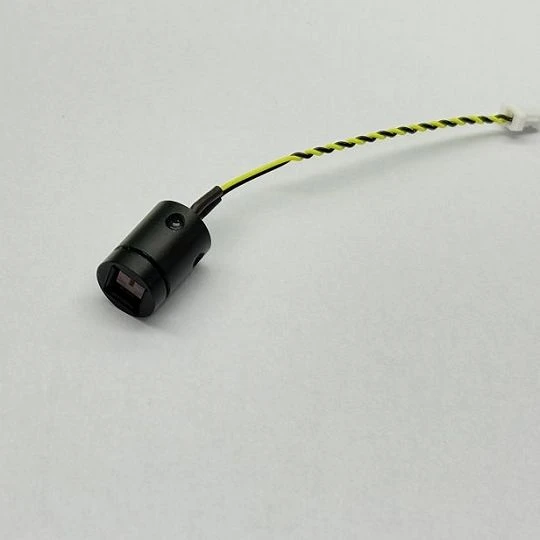

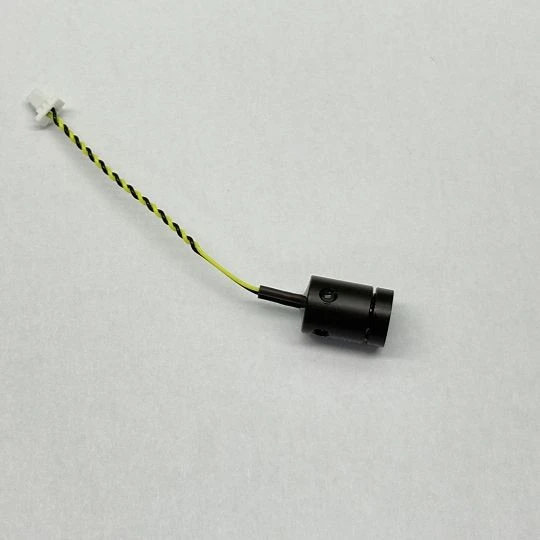

The 27-Line Structured Light Laser Module combines Powell lens technology with DOE optical elements to generate high-density multi-line structured light patterns.
The Powell lens optimizes laser energy distribution and improves brightness consistency among multiple laser lines, providing stable structured light output for 3D imaging and measurement systems.
With 27 structured laser lines, the module provides richer optical information for detailed surface reconstruction, 3D inspection and precision measurement applications.
The optimized optical design helps maintain stable laser patterns and reliable performance during continuous operation, making it suitable for machine vision systems and automated inspection equipment.
Technical Parameters
| Laser Pattern | 27 Lines |
| Wavelength | Customized |
| Fan Angle | Customized |
| Working Distance | Customized |
| Line Width | Customized |
| Single Line Uniformity | Customized |
| Multi-Line Uniformity | Customized |
| Line Straightness | Customized |
| Operating Voltage | Customized |
| Drive Mode | ACC Constant Current |
| Lifetime | 8000-10000h |
Product Features
High Density Multi-Line Projection
The DOE optical element generates 27 structured laser lines, providing more detailed optical information for 3D measurement and surface analysis.
Uniform Brightness Distribution
Powell lens technology improves beam energy distribution and maintains consistent brightness across multiple laser lines.
Detailed 3D Information Acquisition
The higher line-count structured light pattern helps imaging systems capture more surface details for 3D reconstruction.
Stable Industrial Integration
The compact optical design supports integration into machine vision systems, 3D scanners and automated inspection equipment.
Applications
3D Profile Scanning
01
Machine Vision Inspection
02
Industrial Measurement
03
Surface Inspection
04
3D Reconstruction
05
Customization
Dershine Laser provides customized structured light laser solutions according to different application requirements.
Customization options include:
- Laser wavelength
- Line number
- Fan angle
- Working distance
-
Laser pattern
-
Housing structure
