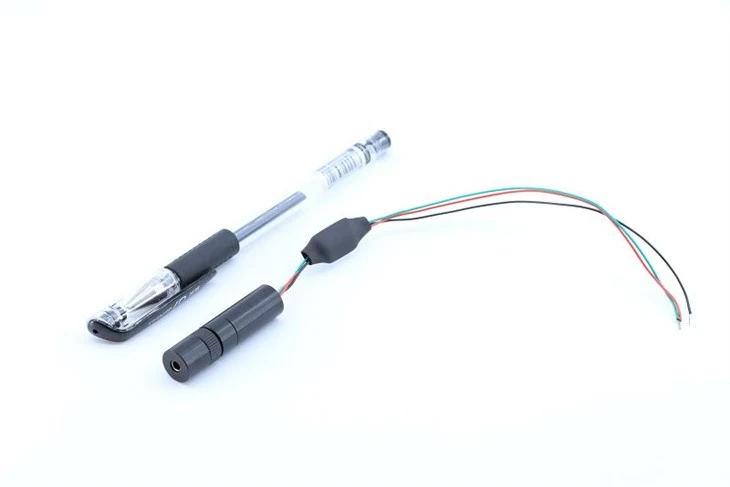

Product Introduction
The Compact Dot Laser Module is designed for applications requiring a small-size laser positioning solution.
With a compact structure and stable optical output, the module provides precise dot projection while saving installation space.
The lightweight design and flexible configuration make it suitable for integration into compact equipment, portable devices and industrial positioning systems.
Product Parameters
|
Item |
Specification |
|
Laser Type |
Dot Laser |
|
Wavelength |
405nm, 450nm, 520nm, 635nm, 650nm, 808nm, 980nm |
|
Output Power |
1-100mW / 1-500mW |
|
Working Distance |
Adjustable / Fixed / Customized |
|
Beam Divergence |
0.10mrad, 0.20mrad, 0.30mrad, 0.50mrad, 0.80mrad, 1mrad |
|
Round Spot Size |
Φ0.5mm@0.5m, Φ1.0mm@1m, Φ4.0mm@5m, Φ5.0mm@10m |
|
Elliptical Spot Size |
1×2mm@1m, 2×4mm@2m, 3×6mm@5m, 5×10mm@10m, 8×16mm@20m |
|
Operating Current |
<100mA / <300mA |
|
Operating Voltage |
3-5V, 12V, 24V |
|
Control Function |
TTL Switch (Optional) |
|
Housing Material |
Copper, Aerospace Aluminum |
|
Operating Temperature |
-10~50℃, -20~60℃ |
|
Storage Temperature |
-40~85℃ |
|
Lifetime |
≥10000h |
|
Accessories |
Industrial Bracket, Power Supply, Cable Extension |

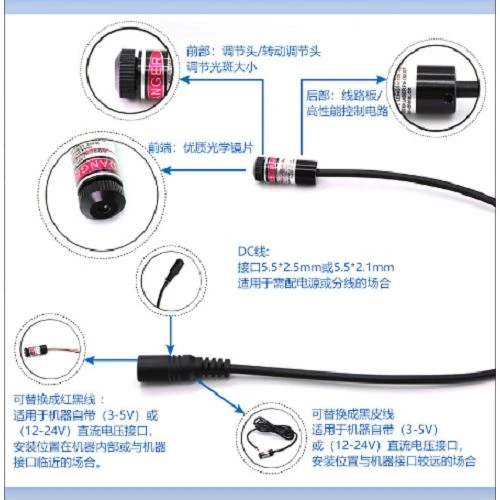

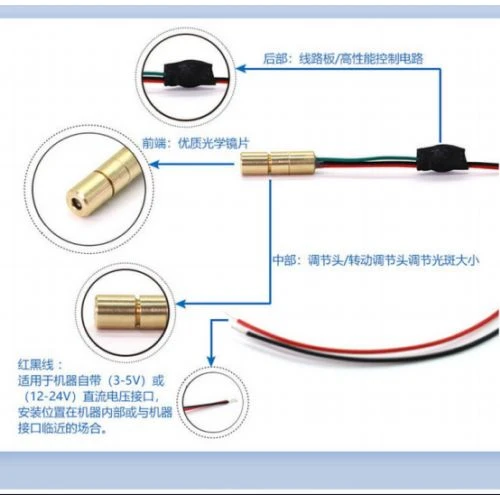

Product Features
Compact Structure Design
The miniaturized housing design reduces installation space requirements and allows easy integration into different equipment.
Stable Dot Projection
Optimized optical design provides stable laser output and consistent dot quality during operation.
Easy System Integration
The compact size and flexible configuration simplify installation and integration for OEM equipment.
Reliable Industrial Performance
Designed for continuous operation with stable optical performance and long service life.
Applications
- Portable Equipment
- Industrial Positioning Systems
- Automation Equipment
- Measurement Instruments
-
Handheld Devices
Customization
Dershine Laser provides customized compact laser module solutions according to different application requirements.
Customization options include:
Laser wavelength
1
>>
Output power
2
>>
Spot size
3
>>
Working distance
4
>>
Housing structure
5
>>
Cable configuration
6
