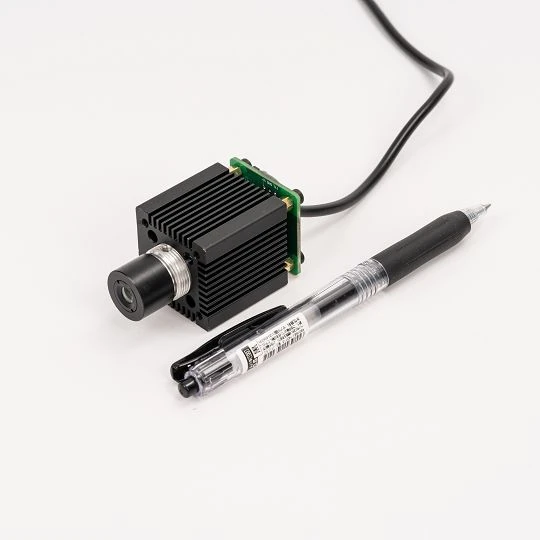

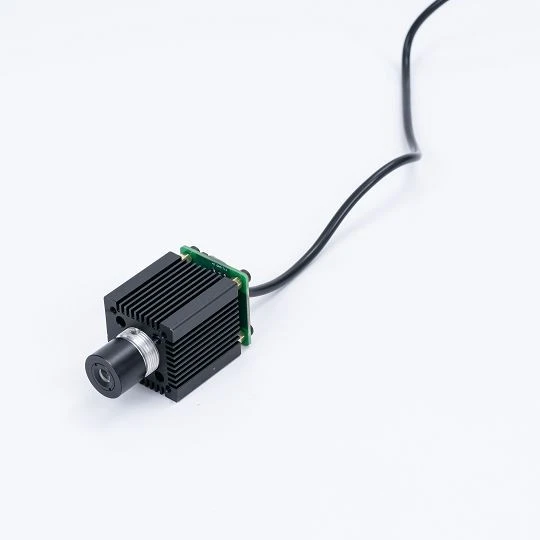

Product Introduction
High Power Infrared Line Laser Modules are designed for industrial applications requiring invisible high-power laser projection combined with cameras, sensors and optical detection systems.
The infrared laser output provides stable and powerful line illumination for machine vision, 3D measurement and industrial inspection equipment.
With optimized optical design, the module delivers a uniform laser line with reliable brightness distribution and stable performance, helping imaging systems capture clear optical information under different working conditions.
High Power Infrared Line Laser Modules can be customized according to application requirements, including wavelength, output power, fan angle, working distance and mechanical structure.
Dershine Laser provides OEM and customized laser solutions for industrial equipment manufacturers, supporting product development and mass production.
Technical Parameters
| Product Type | High Power Infrared Line Laser Module |
| Beam Pattern | Uniform Line |
| Wavelength | Infrared wavelength customized |
| Output Power | Customized |
| Working Distance | Fixed / Adjustable / Customized |
| Uniformity | Customized |
| Line Straightness | ≤0.1% |
| Fan Angle | Customized |
| Pointing Accuracy | Customized |
| Operating Voltage | 3-5V / 12V / 24V |
| Control Function | Analog Modulation / TTL / PWM (Optional) |
| Drive Mode | ACC / APC |
| Protection Function | ESD Protection / Reverse Protection |
| Housing Material | Aluminum Alloy |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 85℃ |
| Lifetime | ≥10000 Hours |
Product Features
High Power Infrared Output
High power infrared output provides sufficient optical energy for long-distance detection and measurement applications.
Machine Vision Compatibility
Designed for systems using industrial cameras and sensors for optical recognition and analysis.
Uniform Laser Line
Optimized optical structure provides stable line brightness distribution and consistent laser output.
Long Distance Projection
Suitable for applications requiring extended working distance and large detection areas.
Infrared Optical Advantages
Infrared laser modules are commonly integrated with cameras and sensors that are sensitive to infrared wavelengths.
The high-power design helps maintain stable optical signals during long-distance measurement and inspection processes.
This makes the module suitable for applications where invisible laser projection and reliable machine detection are required.
Applications
3D Measurement
High-power infrared laser lines provide stable structured light sources for 3D measurement systems.
01
Machine Vision Inspection
The infrared line source supports camera-based inspection and image processing applications.
02
Industrial Detection
Suitable for industrial equipment requiring stable infrared illumination.
03
Automated Measurement Equipment
Provides optical reference sources for automated measurement and inspection systems.
04
Robot Vision
Supports robot systems requiring infrared positioning and detection.
05
Optical Configuration
High Power Infrared Line Laser Modules support different infrared wavelengths and optical configurations according to system requirements.
Available options include:
- Infrared wavelength selection
- Customized output power
- Customized fan angle
- Customized line width
- Customized working distance
OEM Customization
Infrared laser applications often require customized optical parameters to match different cameras, sensors and equipment structures.
Dershine Laser provides customized high-power infrared line laser solutions.
Customization options include:
- Wavelength
- Output power
- Fan angle
- Line width
-
Working distance
-
Housing structure
-
Cable configuration
-
Control method
FAQ
Q: What are High Power Infrared Line Laser Modules used for?
A: They are mainly used in machine vision, 3D measurement, industrial inspection and sensor-based detection systems.
Q: Why use infrared laser modules?
A: Infrared laser modules work with cameras and sensors that detect infrared wavelengths, providing stable optical references for machine systems.
Q: Can infrared wavelength and power be customized?
A: Yes. Wavelength, output power and optical parameters can be customized according to application requirements.
