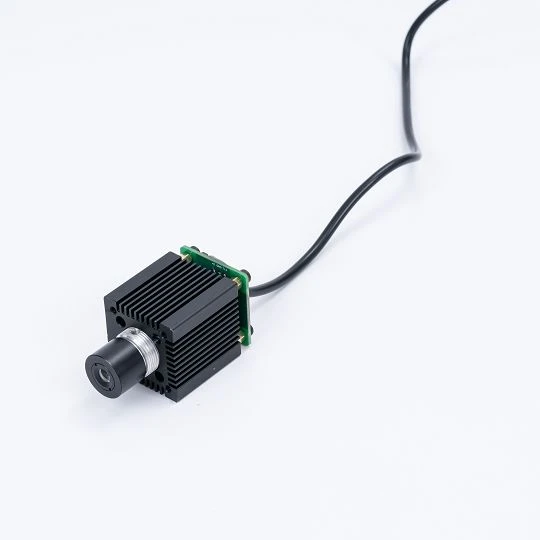

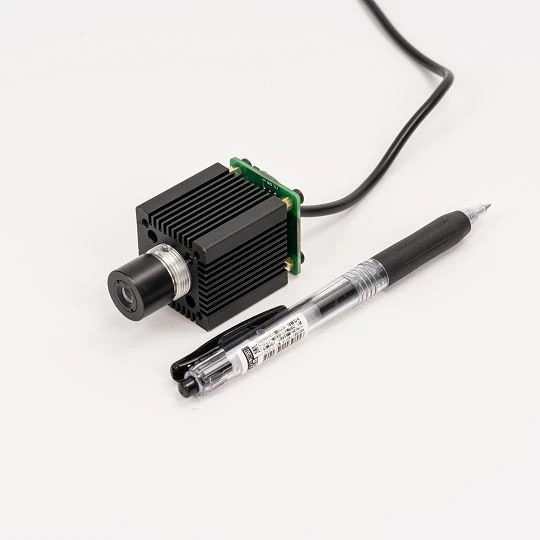

Product Introduction
High Power Visible Line Laser Modules are designed for industrial applications requiring long-distance laser projection, high brightness and stable line output.
With optimized optical design, the module provides a uniform and clear visible laser line with high optical stability, making it suitable for machine vision, industrial inspection and positioning applications.
The high-power design improves laser visibility and projection distance, helping equipment achieve reliable operation in complex working environments.
Different optical configurations, wavelengths and output powers can be customized according to application requirements.
Dershine Laser provides customized laser solutions for industrial equipment manufacturers, supporting optical design, product development and mass production.
Technical Parameters
| Product Type | High Power Visible Line Laser Module |
| Beam Pattern | Uniform Line |
| Wavelength | 405nm / 638nm (Customized) |
| Output Power | 10-5000mW |
| Working Distance | Fixed / Adjustable / Customized |
| Uniformity | Single Mode ≥80%, Multi Mode ≥70% |
| Line Straightness | ≤0.1% |
| Fan Angle | 20°-130° |
| Pointing Accuracy | <5 mrad |
| Operating Voltage | 3-5V / 12V / 24V |
| Operating Current | 100-5000mA (Customized) |
| Drive Mode | ACC / APC |
| Control Function | Analog Modulation / TTL Switch (Optional) |
| Protection Function | ESD Protection / Reverse Protection |
| Housing Material | Aluminum Alloy |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 85℃ |
| Lifetime | ≥10000 Hours |
Product Features
High Power Laser Output
High power output provides stronger visibility and supports long-distance laser projection applications.
Uniform Laser Line
Optimized optical structure provides consistent laser line brightness and width distribution.
Long Working Distance
The module is suitable for applications requiring extended projection distance and large working areas.
Stable Industrial Performance
Designed for continuous industrial operation with reliable optical and electrical performance.
High Power Advantages
High power visible laser modules are especially suitable for applications where standard laser output cannot provide sufficient visibility.
The increased optical power helps maintain a clear laser line over longer distances and under stronger ambient light conditions.
This makes the module suitable for outdoor inspection, large equipment positioning and industrial measurement systems.
Applications
Machine Vision
High brightness laser lines provide stable optical references for vision inspection systems.
Logistics Sorting
The laser line assists positioning and measurement in automated sorting equipment.
Weld Seam Tracking
High-power laser projection supports welding path detection and tracking.
AGV Robot
Visible laser lines provide positioning guidance for mobile robots.
Industrial Inspection
Suitable for industrial equipment requiring long-distance and clear laser references.
Road / Railway Inspection
High-power laser output supports outdoor inspection and measurement applications.
Optical Configuration
High Power Visible Line Laser Modules support different wavelength and power configurations according to application requirements.
Available options include:
- Red laser wavelength
- Green laser wavelength
- Customized output power
- Customized fan angle
- Customized working distance
OEM Customization
Different industrial applications require different laser configurations.
Dershine Laser provides customized high-power visible line laser solutions.
Customization options include:
- Wavelength
- Output power
- Line width
- Fan angle
-
Working distance
-
Housing structure
-
Cable length
-
Control method
FAQ
Q: What are High Power Visible Line Laser Modules used for?
A: They are mainly used for machine vision, industrial inspection, welding tracking, AGV positioning and outdoor measurement applications.
Q: What is the advantage of high power output?
A: High power output improves laser visibility and supports longer working distances.
Q: Can the wavelength and power be customized?
A: Yes. Wavelength, output power and optical parameters can be customized according to application requirements.
