Product Introduction

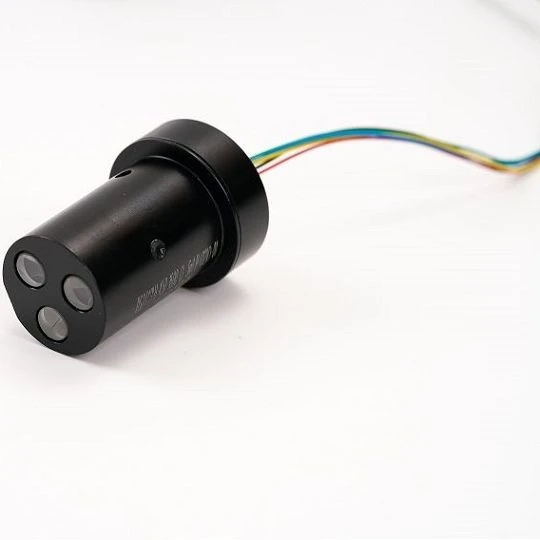

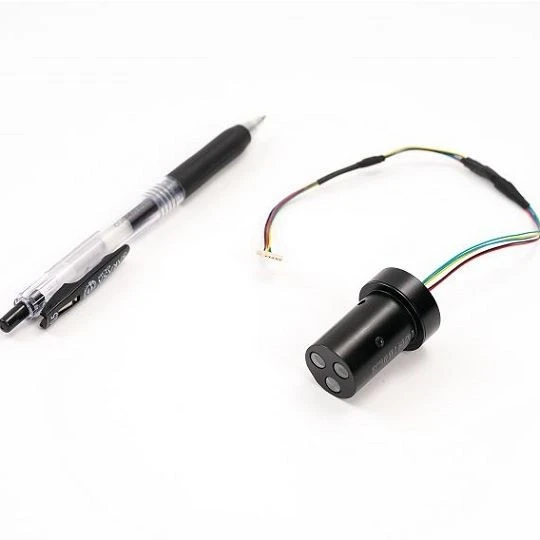

The 4-in-1 Laser Module integrates four laser channels into one compact optical module, providing flexible laser projection solutions for different scanning requirements.
By combining multiple laser patterns and channels in a single module, it helps improve scanning efficiency and simplifies system integration.
The compact structure, stable optical output and flexible configuration make it suitable for portable scanners and customized optical systems.
Technical Parameters
| Laser Channels | 4-in-1 Laser Module |
| Wavelength | 436-760nm |
| Laser Pattern | Single Line, 7 Lines, 13 Lines, 25 Lines, 49 Lines (Customizable) |
| Working Distance | Fixed / Customizable |
| Line Width | Single Line, 7 Lines, 13 Lines, 25 Lines, 49 Lines (Customizable) |
| Depth of Field | Single Line, 7 Lines, 13 Lines, 25 Lines, 49 Lines (Customizable) |
| Single Line Uniformity | ≥68% |
| Multi-Line Uniformity | ≥85% |
| Line Straightness | ≤0.45% |
| Operating Voltage | 3-7V ±5% |
| Drive Mode | ACC Constant Current Drive |
| Control Mode | PWM Control |
| PWM Frequency | 0-100kHz |
| Operating Temperature | 0℃ ~ 40℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Lifetime | 8000-10000h (25℃) |
| Environmental Humidity | 0-90% |
Product Features
Four-Channel Integration
Four laser channels are integrated into one module, providing more flexible scanning combinations and reducing system complexity.
Multiple Laser Pattern Options
Supports different laser line configurations, including single line and multi-line patterns, to meet various scanning requirements.
Stable Optical Output
Optimized optical design provides consistent brightness distribution and reliable laser projection performance.
Compact System Integration
The integrated design reduces installation space and allows easier integration into scanning equipment.
Applications
Handheld Scanners
3D Scanning Equipment
Portable Inspection Devices
Customized Scanning Systems
Customization
Dershine Laser provides customized multi-channel laser solutions according to different application requirements.
Customization options include:
- Laser wavelength
- Laser pattern
- Number of channels
- Working distance
-
Housing structure
