Product Introduction

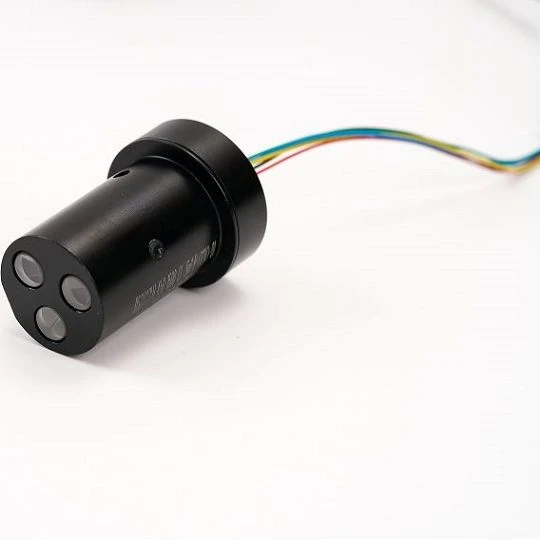

The 3-in-1 Laser Module integrates three laser channels into one compact optical module, providing flexible laser projection solutions for different scanning requirements.
By combining multiple laser patterns in a single module, it improves scanning efficiency while maintaining stable optical performance.
The compact design, high consistency and flexible configuration make it suitable for handheld scanners and portable inspection equipment.
Technical Parameters
| Laser Channels | 3-in-1 Laser Module |
| Wavelength | 450nm, 635nm, 638nm, 660nm |
| Laser Pattern | Single Line, 7 Lines, 13 Lines, 25 Lines, 49 Lines (Customizable) |
| Working Distance | Fixed / Customizable |
| Line Width | Single Line, 7 Lines, 13 Lines, 25 Lines, 49 Lines (Customizable) |
| Depth of Field | Single Line, 7 Lines, 13 Lines, 25 Lines, 49 Lines (Customizable) |
| Single Line Uniformity | ≥70% |
| Multi-Line Uniformity | ≥85% |
| Line Straightness | ≤0.45% |
| Operating Voltage | 12V |
| Drive Mode | ACC Constant Current Drive |
| Control Mode | PWM Control |
| PWM Frequency | 0-100kHz |
| Operating Temperature | 0℃ ~ 40℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Lifetime | 8000-10000h (25℃) |
| Environmental Humidity | 0-90% |
Product Features
Multi-Channel Integration
Three laser channels are integrated into one module, reducing system complexity and improving installation efficiency.
Flexible Laser Pattern Combination
Supports different laser line configurations to meet various scanning and measurement requirements.
Stable Optical Performance
Optimized optical design provides uniform brightness, stable projection and reliable operation.
Compact Structure Design

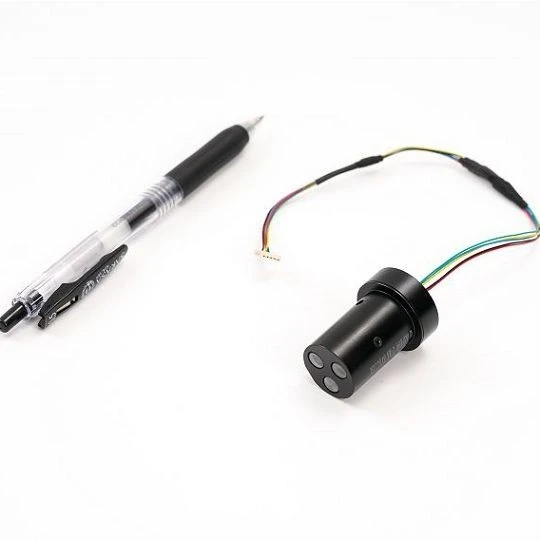

Small size and lightweight design make it suitable for portable scanning equipment.
Applications
Handheld Scanners
3D Scanning Equipment
Portable Inspection Devices
Industrial Measurement
Customization
Dershine Laser provides customized multi-channel laser solutions according to different application requirements.
Customization options include:
- Laser wavelength
- Laser pattern
- Working distance
- Line number
-
Housing structure
